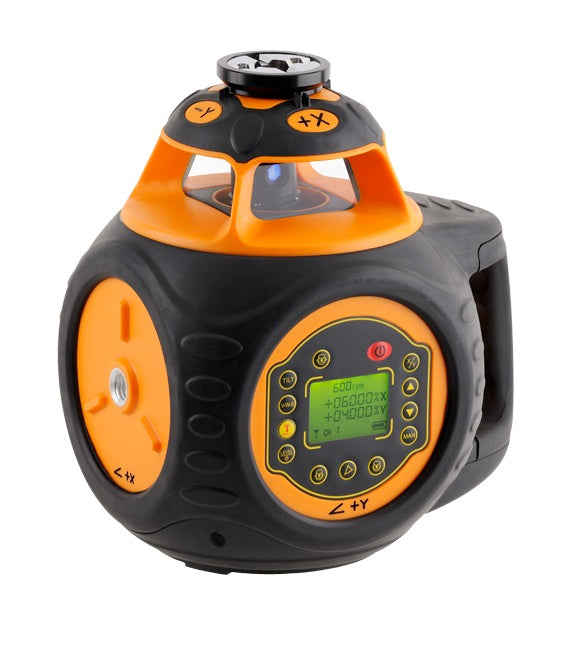

Geo-Fennel FL505 HV-G two-fall laser
Shipping
1-3 days delivery
FL 505HV-G
Improved performance through PowerSwitch technology: performance data for a Class 3R laser in Laser Class 2. 4mm beam diameter for optimized long-range compatibility with FMR 700/800. Now with FR 80-MM receiver with mm display as standard.
Self-leveling horizontally and vertically Tilt functions Horizontal operation Digital tilt adjustment of X and Y axes up to ± 10% Manual tilt X and Y axes. Tilt functions Vertical operation. X-axis direction ± 10% adjustable, Y-axis self-leveling. The X and Z axis directions can be adjusted manually. Automatic TILT function. VWS (Vibration Wind Protection) Function: The unit continues to rotate even in light ground shaking or light wind (VWS is combined with TILT function) 9-channel / 2-way wireless remote control to operate. all device functions. Li-ion battery technology.
- 2-axis grade laser
- Horizontal and vertical
- Digital tilt adjustment
- TILT function
- VWS function
- 90° plumb up
- Illuminated display
- 2-way radio remote control
- Manual function
- 4-level scanning function
- Rechargeable battery and battery operation
- Water and dust protected according to IP 66
FL505HV-G
Specifications
| Laser Diode | Red |
| Self-leveling area | ± 8° |
| Accuracy horizontal | ±0.5mm/10m |
| Accuracy vertical | ±1.0mm/10m |
| Workspace without rec. | Ø 40 m |
| Work area with receiver (FR 80-MM) | Ø 400 m |
| Remote work area |
150 meters |
| Lit | Digital |
| Tilt horizontal drift X axis | ±10,000% |
| Tilt horizontal drift Y axis | ±10,000% |
| Slope vertical drift X axis | ± 10,000% |
| Slope vertical drift Y axis | Horizontal self-levelling |
| Both axes X/Y | ± 14% |
| Laser class | 2 |
| Rotation speed rpm | 300, 600, 1100 |
| Operating Time | 40 h |
| Power supply | Li-Ion, Smart, Alkaline |
| Dust/water protection | IP66 |
| Weight (unit only) | 3.85 kg |
| Radio remote control channels | 9 |
| Rotary without receiver | Ø40m, Ø60m |
| Scan without recipient | 60 m (radius) |
| Scan angle | 0°, 10°, 45°, 90°, 180° |
| Temperature Variation | -10°C to +50°C |
Supplied with
- FR 80-MM with bracket
- 2-way radio remote control
- Li-ion battery & charger
- Vertical support
- Scope
- 360° horizontal fine adjustment
- Hard case
