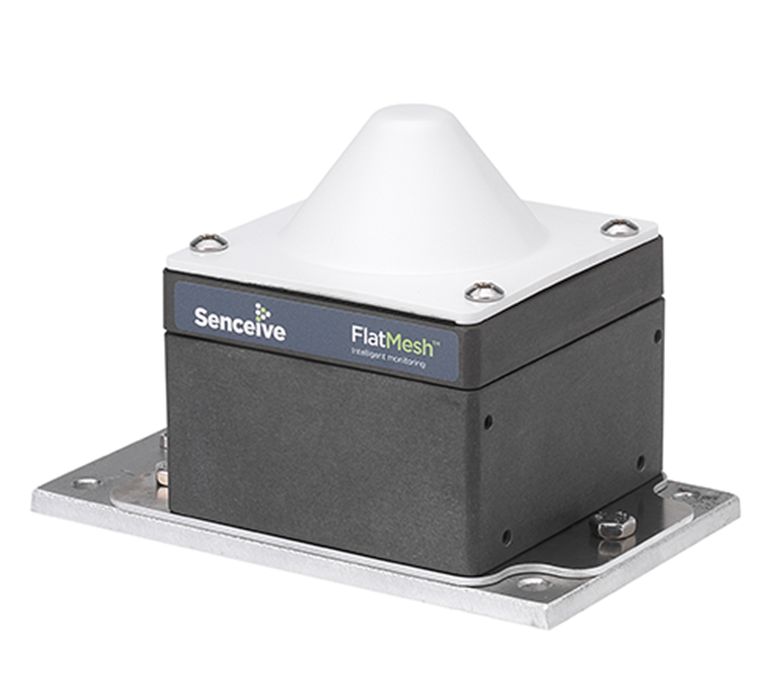

Triaxial tilt sensor node
Triaxial Tilt Sensor Node is an extremely accurate and exceptionally stable triaxial wireless tilt sensor
Various reporting speeds, a robust design and up to 15 years of battery life make this wireless tiltmeter suitable for many environments and applications. The wireless tiltmeter nodes transmit accurate readings from the site via one of our wireless communication platforms (FlatMesh or GeoWAN) via a gateway. Visualize and interact with your data online using the Senceive WebMonitor platform or third-party software
It has been successfully used in many applications, including those measuring:
- Tunnel distortion
- Tunnel lift/building
- The slip of the rampart
- Structural movement
- Rail tracks/buildings
- Rail bed rail elevation and turning
Features
- Integrated triaxial wireless tilt monitor sensor
- Extremely low sound performance
- 0.0001° (0.0018 mm/m) resolution and ±0.0005° (±0.009 mm/m) repeatability
- Built-in battery with long life
- 12-15 years of battery life, including when acting as a relay node in the mesh communication network
- Integrated temperature sensor
- Versatile mounting options
- Waterproof to IP66 / IP67 / IP68
- Firmware can be upgraded remotely wirelessly via the gateway, reducing costly site visits (FlatMesh)
FlatMesh triaxial tilt node - FM3N-IX GeoWAN triaxial tilt node - LR3N-IX
Physical Specifications
| Parameter | Value |
| Dimensions excluding antenna | 90 x 90 x 60 mm 90 x 96 x 60 mm (including valve) |
| Total mass | about 0.6 kg |
| Housing materials | Die cast aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP66 / IP67 IP68 at 1 m for 24 hours |
| Mounting options | 1/4" UNF hole in the bottom, M4 blind hole in the side Plates and brackets available for magnetic fixation, trackbed, rod and pole mounting and many other applications.tions1/4" UNF hole in the bottom. M4 blind holes in the side.
Plates and mounts available for magnetic fixing, tape bed, pole and pole mounting and many other applications |
| Temperature range during operation | -40°C to +85°C |
Inclination Sensor Specifications
| Parameter | Value |
| Repeatability (-IX variant) | 0.0001° (0.00175 mm/m) |
| Repeatability (-IXH variant) | ±0.0025° (±0.0436 mm/m) |
| Assortment | ±90° |
