Crack sensor
SKU FM3N-CS
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
-
£0.00
Current price
£0.00
Shipping
1-3 days delivery

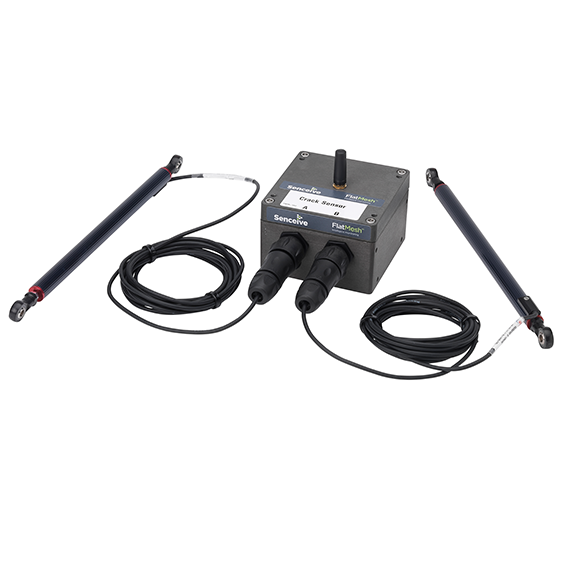

Crack sensor
Used to monitor structural movement including pile separation, crack movement and expansion joint movement.
The crack sensor node connects to a linear displacement sensor. It is high-precision sampling circuitry that drives the sensor and reports its measurements via Senceive's wireless communication network to a gateway. It has been successfully used in many applications, including those measuring:
- Crack motion
- Pole separation
- Structural movement
- Joint monitoring of enlargement
Features
- Watertight, robust connectors for easy installation
- Automatic sensor type detection
- Extremely low sound performance
- 16-bit resolution (65,536 steps across the full scale)
- Integrated long life battery
- 12-15 year battery life
- Internal temperature sensor
- One and two channel variants offered as standard
- Waterproof to IP66 / IP67 / IP68
- Various mounts available for easy on-site installation
FlatMesh crack sensor node - FM3N-CS and GeoWAN crack sensor node - LR3N-CS
Physical Specifications
| Parameter | Value |
| Dimensions excluding antenna and valve | 90 x 90 x 60 mm |
| Dimensions excluding antenna | 90 x 96 x 60 mm (including valve) |
| Total mass | 0.5 kg* * Approximate values only |
| Housing materials | Die cast aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP66 / IP67 IP68 at 1m for 24 hours Includes contacts when immature |
| Mounting options |
Clearance hole for M4 socket screw in the bottom Plates and brackets available for magnetic fixing, trackbed, pole and pole mounting and many other applications |
| Temperature range during operation | -40°C to +85°C |
Crack sensor interface
| Parameter | Value |
| Circuit Topology | Voltage Divider |
| Stimulus | 2.5V, 100mA max |
| Resolution | 0.0015% of full scale |
| Noise level | 0.005% of full scale (typical peak to peak) |
