Nano triaxial tilt sensor node

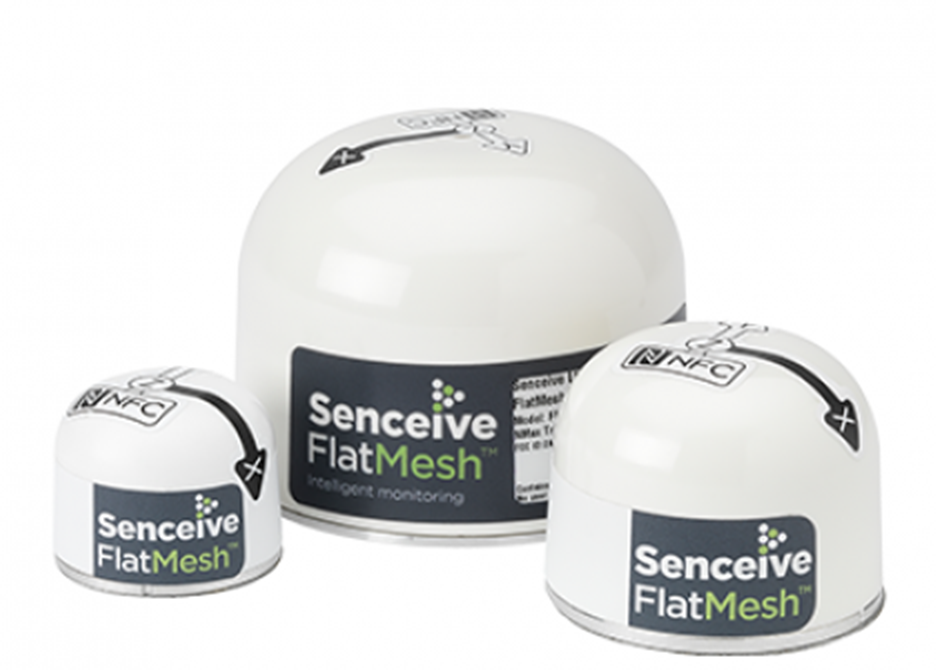

Includes nano, nanoplus and nanomacro triaxial tilt sensor nodes
The Nano triaxial tilt sensor node range has its own unique miniature form factor and is built to deliver accurate, reliable tilt monitoring for demanding applications such as railway, construction and mining. It is easy to deploy, durable, has no external antenna and a waterproof shell (IP68 / IP69K rated) that can withstand the most challenging environments.
Nano's discreet shape and wide range of simple mounts enable extremely fast installation on any surface using glue, screws or magnetic mounting. Its innovative design allows the Nano tilt sensor to be installed in any direction making it ideal for wireless tilt monitoring of tunnels, bridges, buildings and retaining walls. The Nano series comes with NFC (Near Field Communication) capability, ™ which allows the user to adjust settings directly at the node.
With a maximum reporting rate of two seconds, Nano is ideal for applications where a high reporting rate is needed. It has a resolution of 0.0001° (0.00175 mm/m) and repeatability options as low as ±0.0005° (±0.0087 mm/m). The Nano tilt monitoring system offers unmatched specifications and a battery life of up to fifteen years, making it the future of wireless tilt sensing.
The Nano series uses the same core platform as our other tilt sensors, so it can deliver a similar level of performance and reliability, all in a small and robust package. Nanos has been successfully used in many applications, including:
- Tunnel distortion
- Tunnel lift/building
- The slip of the rampart
- Structural movement
- Rail tracks/buildings
- Rail bed rail elevation and turning
- Features
- FlatMesh Nano sensor node
- FlatMesh NanoPlus sensor node
- FlatMesh NanoMacro sensor node
- Data sheet
- Video
Features
- Integrated triaxial tilt sensor
- Extremely low sound performance
- Low profile and discreet
- 0.0001° (0.0018 mm/m) resolution and ±0.0005° (±0.009 mm/m) repeatability
- Operative in all directions
- Integrated long life battery
- Integrated temperature sensor
- Versatile mounting options
- Waterproof to IP67 / IP68 / IP69K
- NFC capability, allowing for on-site adjustments of the node
- "Hibernate" functionality
FlatMesh Nano Sensor Node FM3NT-10
Physical Specifications
| Parameter | Value |
| Diameter | 40mm |
| Height | 30mm |
| Total mass | 40 g |
| Housing materials | PVC and Aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP67 / IP68 at 2m for 24 hours |
| Mounting options | Magnet, screws, gluing |
| Temperature range during operation | -40°C to +85°C |
Inclination Sensor Specifications
| Parameter | Value |
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Assortment | ±90° |
FlatMesh NanoPlus sensor node FM3NT-30
Physical Specifications
| Parameter | Value |
| Diameter | 58mm |
| Height | 45mm |
| Total mass | 110g |
| Housing materials | Polycarbonate and aluminum |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP67 / IP68 at 2m for 24 hours |
| Mounting options | Magnet, screws, gluing |
| Temperature range during operation | -40°C to +85°C |
Inclination Sensor Specifications
| Parameter | Value |
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Assortment | ±90° |
FlatMesh NanoMacro sensor node FM3NT-50
Physical Specifications
| Parameter | Value |
| Diameter | 86.7mm |
| Height | 64.2mm |
| Total mass | 305g |
| Housing materials | Polycarbonate and aluminum |
| Protection | IP68 at 1 m for 24 hours IP69K |
| Mounting options | Magnet, screws, gluing, swivel mount or clamping |
| Temperature range during operation | -40°C to +85°C |
Inclination Sensor Specifications
| Parameter | Value |
| Resolution | 0.0001° (0.00175 mm/m) |
| Repeatability | ±0.0005° (±0.0087 mm/m) |
| Repeatability (High G variant) | ±0.0025° (±0.0436 mm/m) |
| Assortment | ±90° |
