Millivolt sensor nod
SKU FM3N-MV5
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
-
£0.00
Current price
£0.00
Shipping
1-3 days delivery

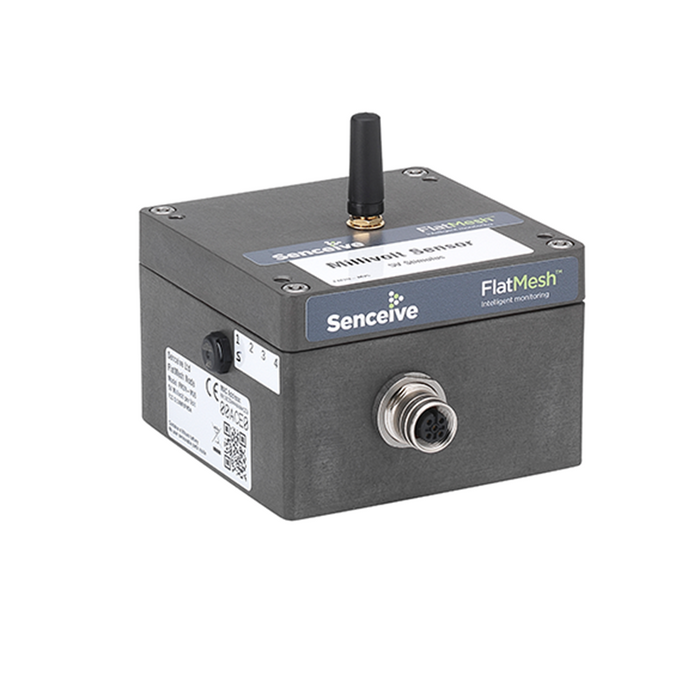

Millivolt sensor node
The Millivolt Sensor Node makes it possible to integrate a range of structural and geotechnical sensors into a wireless remote monitoring system.
The millivolt sensor node is used to monitor a range of resistive bridge sensors, including strain gauges and load cells. It uses the integrated radio transceiver to report its measurements via Senceive's wireless communication network to a gateway.
Example of supported sensors:
- Pressure sensor (differential, absolute)
- Foil strain gauge
- Torque transmitter
- Load Cells
- Load pins
- Moisture detection
- Management skills
Features
- Watertight, robust connectors for easy installation
- Regulated sensor stimulation
- 24-bit sensing performance
- 12-15 year battery life
- Versatile mounting options
- Waterproof to IP66 / IP67 / IP68
FlatMesh millivolt sensor node - FM3N-MV5 and GeoWAN millivolt sensor node - LR3N-MV5
FlatMesh physical specifications
| Parameter | Value |
| Dimensions excluding antenna and valve | 90 x 90 x 60 mm |
| Dimensions excluding antenna | 90 x 96 x 60 mm |
| Total mass | 0.57 kg |
| Housing materials | Die cast aluminium |
| Protection (BS EN 60529: 1992 + A2: 2013) | IP66 / IP67 IP68 at 1m for 24 hours |
| Mounting options |
Spacer hole for M4 socket screw in the bottom M4 blind hole in the side |
| Temperature range during operation | -40°C to +85°C |
Millivolt sensor interface
| Parameter | Value |
| Contact | M12 Female 5-pin A-coded screw type |
| Assortment | ±0.625 V (±125 mV/V) |
| Repeatability | 74.5 nV (14.9 nV/V) |
| Stimulus | 5.0 ± 0.1V 150mA max |
