Tilt beam in Aluminum

Tilt beam

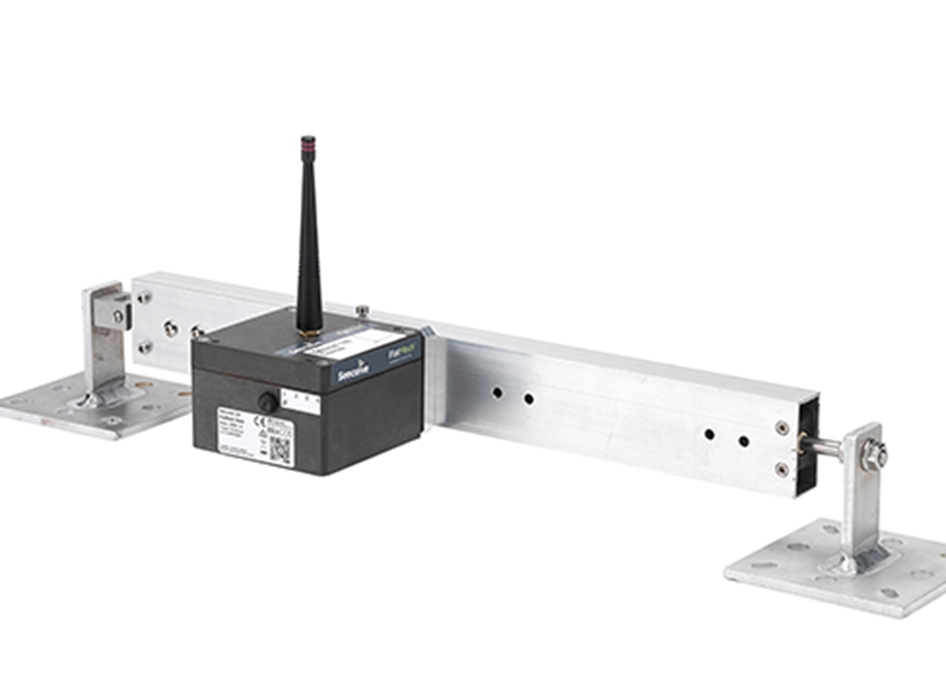

Tilt Beam is a light, rigid aluminum beam that is used together with a triaxial tilt node, a NanoPlus or a NanoMacro.

The tilt beam can be mounted in any direction and quickly deployed in single and chained configurations.

Installation of the tilt beam can be done with minimal tools in minutes. Complex bolting and washer arrangements are not required due to the beam's built-in bearing and joint system. This allows for thermal expansion and misalignment of the support brackets while closely monitoring the structure. The attached slope node requires no leveling, further reducing installation time.

It has been successfully used in many applications, including:

• Motion monitoring of any structure
• Longitudinal residence
• Tunnel convergence/divergence
• Lateral displacements

• Features
• Specifications
• Data sheet

Features

• Light and durable construction in aluminum and stainless steel
• Completely wireless; no wires or electrical connections required
• Easy installation and removal. Fasteners installed in minutes; beam installed in seconds
• Can be installed in any direction without requiring leveling
• Low friction, weatherproof bearings that do not require maintenance or lubrication
• Automatically compensates for thermal expansion and misalignment of support brackets
• Can be chained to provide movement profiles

Tilt beam - FF-BK-xxxx

Physical Specifications

Parameter	Value
The dimensions of the beam	500mm, 1000mm, 2000mm, 3000mm (custom lengths available upon request)
Support bracket dimensions	Base: 100x100 mm Height: 75 mm
Total mass (without node)	2 kg (approx. for a 2 m beam)
Materials	Aluminium with A2 stainless steel fasteners

Vertical area

Expansion area

Rotation area
