InfraGuard™
InfraGuard™ is a sophisticated wireless monitoring solution that helps asset owners manage critical infrastructure.
It doesn't just tell you what your assets are doing - it shows you. Smart tilt sensors respond to movement to give you instant insight into an event in a remote location. You'll get alerts of small-scale movement that can indicate the early signs of a tilt or structural failure, and graduated alerts of further movement, backed up by photographic images. With a proven track record of detecting potentially disruptive and dangerous events, InfraGuard can be your eyes and ears in place, without having to set foot on the ground.
The system is suitable for many monitoring applications including:
- Locations where there is a possibility of sudden, potentially catastrophic movement
- Websites considered valuable and vulnerable

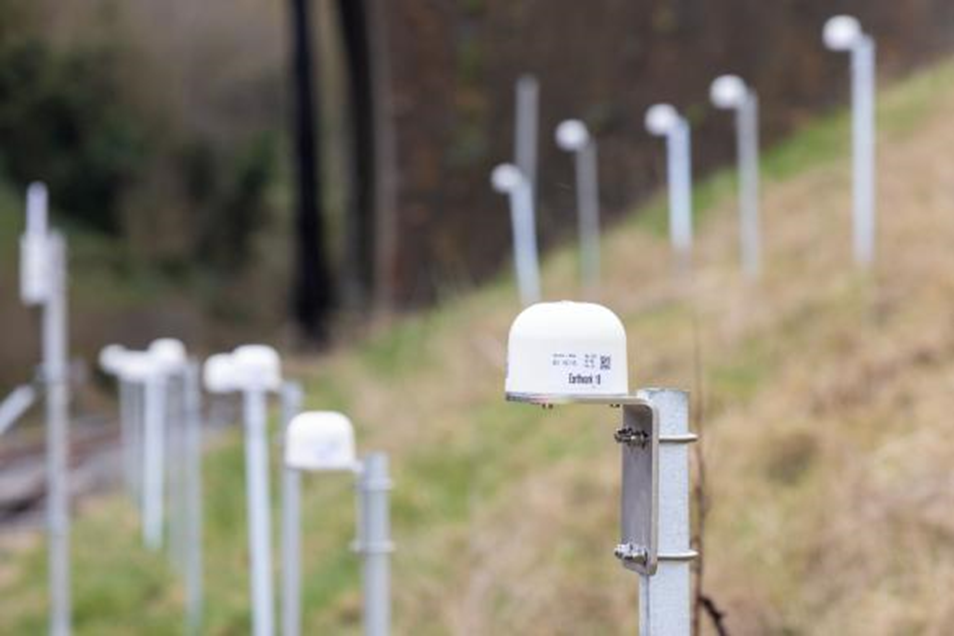

- Monitoring slopes such as road and railway crossings, embankments, levees and mines
- Places where early warning of failure such as landslides and rock falls would be needed
Features
- Computation in place - data assessment and management is performed in the field without relying on external server analysis
- Responsive alarms - to save power and maintain system autonomy, data uploads normally occur every 15 minutes. But through the intelligence of the system, if an alert is received by the gateway, it will immediately connect to the mobile network and upload its data
- Sensor Trigger - if a sensor detects motion that violates a threshold, it will trigger a sample to be taken on all sensors in its network. This is critical to interpreting a warning to understand its validity or potential impact
- Camera triggering - when a camera is deployed, it sends images according to a preset schedule, but is also automatically triggered by detecting sudden movement by sensors
- Sudden movement - the ability to not only understand long-term trends and patterns, but to detect sudden movement in near real time is fundamental to monitoring critical assets. The built-in network intelligence in FlatMesh nodes™ enables them to trigger a sample if they detect a 1°/second tilt, regardless of their preset sampling schedule. This results in a high degree of confidence that a sudden event will be detected
- Dynamic sampling/reporting - when motion is detected, a higher sampling rate is often required to understand the rate of change and plan appropriate steps. Predefined parameters and trigger levels can be programmed, instructing the system to change sampling and reporting rates depending on the degree of movement
InfraGuard™
Specifications
| Parameter | Value |
| Communication network required | FlatMesh 2.4GHz |
| Compatible tilt sensors and camera | FlatMesh Triaxial Tiltmeters, FlatMesh Nano Triaxial Tiltmeters, 4G Camera |
| Expected latency | 1-5 min (Depending on the quality of the mobile network) |
| Mobile network requirements | 3G / 4G mobile network |
| Sudden motion detection threshold | 1°/sec |
| Maximum increased sample rate |
1 minutes |
| Maximum number of nodes in the network (including cameras) | 80 |
| Warning levels | 3 levels on either side of the baseline |
 |
|
|
|
|
|
|
|
