Digital Interface Node
The Digital Interface Node is a robust IP66/1P67 rated digital data logger that transforms your data collection from manual to automated sampling. This wireless digital data logger is compatible with a large number of sensors that carry a digital output and enables an easy connection to the Senceive back-end & the front-end platforms. Interact and manage your data online and change reporting times and thresholds remotely.
The digital interface node is compatible with InfraGuard™. Choose this responsive reporting option when you need dynamic reporting. This means that your sensors can be self-governing tools that react to changing conditions on site. Features include accelerated sampling, triggered site photos, and escalated notifications, with near-real-time notifications.
The digital interface node is ideal for many applications, including:
- Understand membrane wall movements when installing inclinometers on site in large excavation and construction projects.
- Manage your mining, rail and highway geotechnical assets using piezometers, extensometers and inclinometers.
- Environmental applications such as continuous logging of weather station data including precipitation, wind speed and temperature.
The digital interface node is compatible with a wide range of digital structural, environmental and geotechnical sensors including:
- Inclinometers
- Extensometers
- Piezometers
- Load/pressure cells
- Hydrostatic pressure cells
- Temperature
- Wind speed
- Vibration
- Water level
- Hydrostatic level cells
- Stress/strain
- Crack movements
Integrated sensors
- GeoSense
- GeoKon
- Sisgeo
- Osprey
Features
- Versatile mounting options
- Compatible with FlatMesh™ and GeoWAN™ wireless communication platforms
- Waterproof to IP66 / IP67
- The firmware can be upgraded wirelessly via the gateway, reducing costly site visits (FlatMesh™)
- Extremely low sound level
- NFC compatibility, allowing adjustments to the node in place
- "Hibernation" feature
- Power sensors that require up to 20 watts
- Configurable output voltage enables longer sensor chains
- Compatible with our responsive reporting option InfraGuard™ for network-based and dynamic reporting (FlatMesh™)
- Hardware support for these connection protocols: RS232, RS422, RS485, SDI-12, MODBUS and CAN

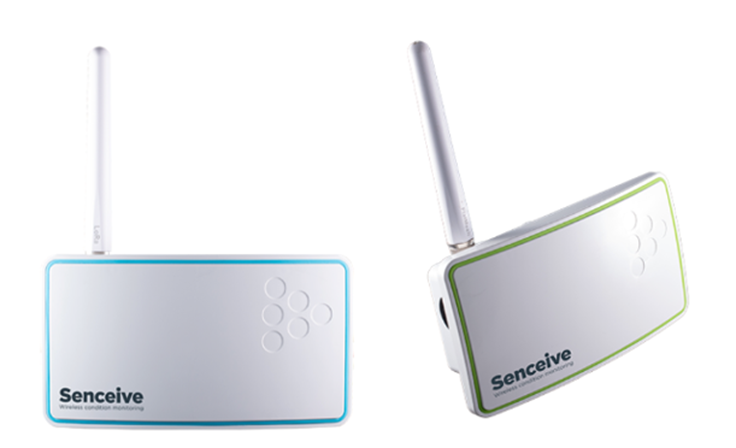

FlatMesh digital interface node PDS-F3N1-DIN
GeoWAN digital interface node PDS-L3N1-DIN
Physical Specifications
| Parameter | Value |
| Dimensions excluding antenna and bracket | Size 246 x 137 x 88 mm |
| Dimensions including antenna and bracket | Size 246 x 303 x 106 mm |
| Total mass | 836 g without batteries
1090 g with 2 batteries 1346 g with 4 batteries |
| Material for case | Polycarbonate |
| Protection | IP66 and IP67 |
| Mounting options | Post mount, wall mount |
| Operating temperature range | -40°C to +85°C |
Sensor interface
| Parameters | Value |
| Contact | M12 Internal 8-pin A-coded Screw clamp |
| Output voltage (DC) | 0.8 V to 22 V |
| Output Current | Up to 2A |
| Digital interfaces | RS232 RS422(1) RS485(1) (half duplex and full duplex) SDI-12 (1): With software controlled termination and bias |
