COBRA PLUG-IN GPR KIT

COBRA PLUG-IN GPR KIT

SKU COBRA PLUG-IN GPR KIT
£0.00 - £0.00
£0.00
£0.00 - £0.00
£0.00

Shipping

1-3 days delivery

COBRA PLUG-IN GPR

Cobra Plug-In GPR uses real-time sampling of the radar signal. Today, major manufacturers use traditional search pre-sampling, which does not give the correct picture of the real signal. Real-time sampling enables 32,000 stacks/second, resulting in an amazing 45 dB increased signal-to-noise ratio.

Features:

  • Breakthrough technology - GPR for real-time sampling with high permeability

  • Monostatic antenna - Better performance compared to conventional biostatic GPR

  • Airborne and air-coupled - Easy to use, even in non-walkable terrain

  • Performance - 45 db increased S/N ratio compared to conventional GPR

  • GPR - Fits all our popular low frequency SE antennas

  • Handheld rugged controller - Included, with DGPS

  • Wireless bluetooth operation - No cables, less ringing

  • Low power consumption - 16 hours between charges

  • Compact and light - Complete system under 7 kg

  • Unmatched penetration - Up to 120 m depth

  • Low transmitter output - Less ringing in data

  • Post-processing software - Included

Technical specification

COBRA PLUG-IN GPR UNIT
Dynamic range 192 dB (32 bit)
Transmitter output 40 V
Time range 0-1,600 ns
Maximum depth range 120 m (RDP=4)
Sampling interval 3.125 ns (320 MHz)
PRF rate 156 kHz
Stacking 32,000 stacks/s, 45 dB increased S/N-ratio
Power Integrated 11.1 V/ 6.6 Ah, 73 Wh Li-Ion battery
Charger Mascot 2241 3-cell Li-Ion
Operating time 16 hours continuous use
Mechanical Size: 190 x 140 x 80 mm (L x W x H)
Weight: 1 kg (including battery)
COBRA PLUG-IN
CONTROL UNIT / CU
Ultra Rugged PDA Mesa Geo Notepad
Processor 806 MHz PXA320
Operating system Windows Embedded Handheld 6.5 Pro
Memory and data Storage 256MB RAM, 4GB Flash
Display 5.7” High visibility backlit VGA LCD, (640x480 px resolution)
Keyboard 15 control buttons, 5 way navpad
Ports RS-232, USBx2, 12 V DC, audio jack
Mechanical Size: 136 x 220 x 51 mm (L x W x H)
Weight: 1 kg (including two batteries)
Environmental IP67 water-and dustproof, operating temperature: -20°C to 50°C, MIL-STD-810G approved
Power Smart Li-Ion batteries, 38 Wh
Operating time 16 hours operating time
Wireless connections Bluetooth 2.0+EDR (30 m range), WiFi 802.11b/g, Quad-band 3G GSM/GPRS/EDGE, data communication
interface, SMS
Camera 3.2 MP resolution with autofocus, geotagging
GPS Integrated real-time SBAS with 2-5 m typical accuracy

Cobra Plug-in GPR

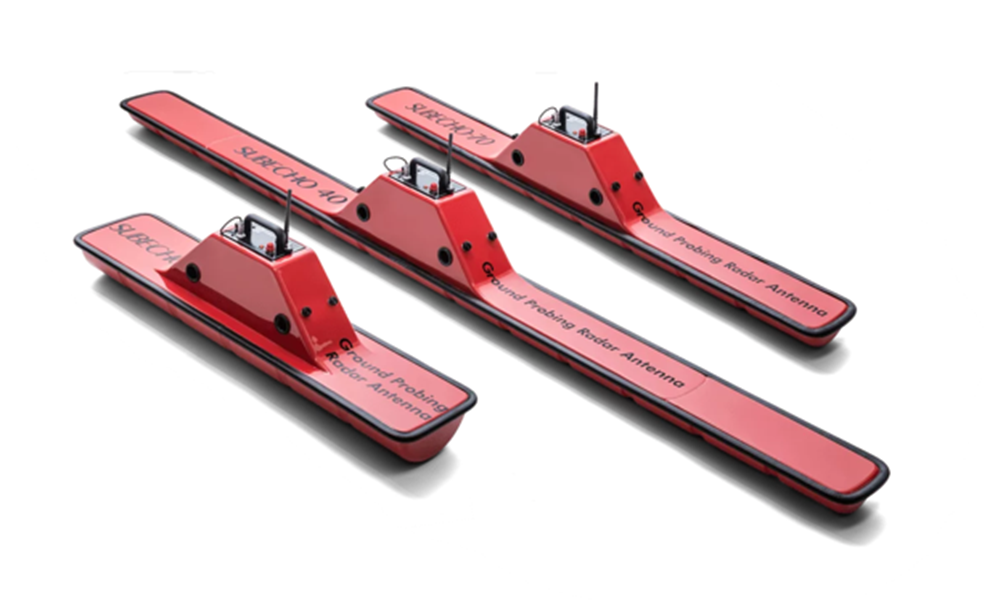

SUBECHO Radar Antennas

MF & LF 32-bit

Weight: 1 kg
Size: 190 x 140 x 80 cm
Max depth range: 120m
Battery: 94 Wh Li-Ion (16h)
Includes: Drone mounting adapters, cradle and data acquisition/post-processing software.

Model SE-150

Bandwidth: 20-280 (260 MHz)
Weight: 3.5 kg
Size: 92 x 22 x 22 cm

Model SE-70

Bandwidth: 20-140 (120 MHz)
Weight: 3.7 kg
Size: 139 x 15 x 21 cm

Model SE-40

Bandwidth: 15-105 (90 MHz)
Weight: 4.7 kg
Size: 200 x 15 x 21 cm
