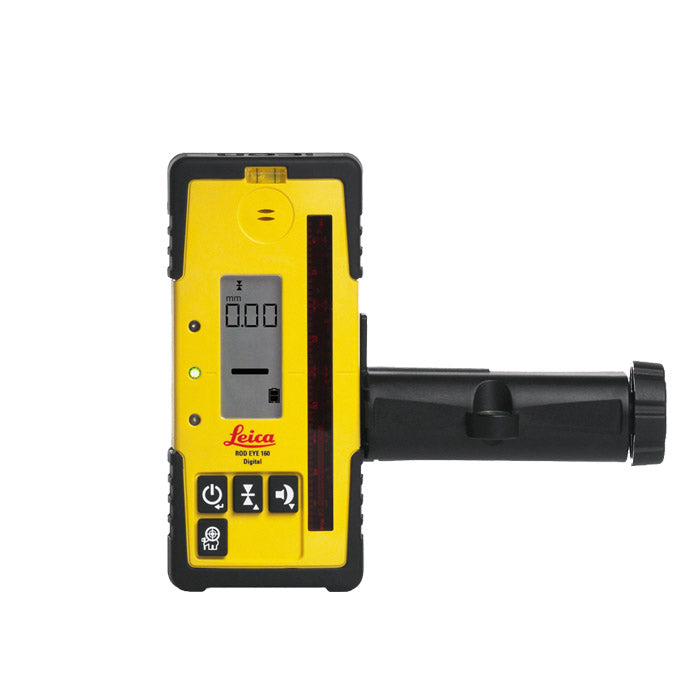

Leica Rod Eye 160 Digital
Professional receiver with digital reading, millimeter accuracy and resistant to reflections. Holder included.
-
LCD Indication. Two large graphic displays on the front and back of the receiver.
-
LED Indication. Three strong LEDs can be used as a clear reference for the receiver's position.
-
Menu function. Digital information is displayed above and below level in mm, cm, inches, fractions of inches and feet.
-
Level indication. Ensures good alignment and improves your reading accuracy.
-
Exceptional reception. The extra high reception windows contain the unique technology that provides accurate digital reading.
-
Sound indication. Three sound levels. Up to 105 decibels for high noise environments.
-
Versatile rod holder. A robust mounting bracket ensures stable mounting on all types of measuring rods. A round spirit level helps keep the receiver in a flat position.
-
Protective casing. Protects the recipient from falls in the workplace.
-
Built-in flash protection. Detects and ignores light from other strong light sources in the workplace that may interfere with the receiver's function.
-
Indication laser beam (Beam Finding). If the receiver passes through the laser beam, it quickly beeps twice
-
Out of Beam Display. If the detector is moved from the detector area, the arrow display will show the direction to return to the laser beam.
- Warning low battery level. A little laser icon on the receiver's display warns the user when the battery level is getting low.
Technical specification | |
---|---|
Work radius/range |
1350 m / 4430 ft
|
Detectable Height | 120 mm / 5 in |
Detectable spectrum | 600 nm to 800 nm |
Accuracy Very Fine | ± 0.5 mm / ± 0.02 in |
Accuracy Fine | ± 1.0 mm / ± 0.04 in |
Accuracy Medium | ± 2.0 mm / ± 0.08 in |
Accuracy Coarse | ± 3.0 mm / ± 0.12 in |
Accuracy Very Coarse | ± 5.0 mm / ± 0.20 in |
Adjustable sound volume | 105 dBA / 65dBA / Off |
Auto Shutdown |
10 minutes
|
Arrow display |
15 channels
|
Flash protection |
Yes
|
Memory, last detectable laser beam |
Yes
|
Indication laser beam |
Yes
|
Low battery warning |
Yes
|
Warranty |
3 years
|
Protection class |
IP67
|
Batteries |
50+ hours (2 x 1.5 V "AA" )
|
Dimensions |
173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in
|
Working temperature range |
-20°C to +50°C / -4°F to +122°F
|
Storage temperature (not batteries) |
40°C to +70°C / -40°F to +158°F
|
