L5 M-Pro
Shipping
1-3 days delivery

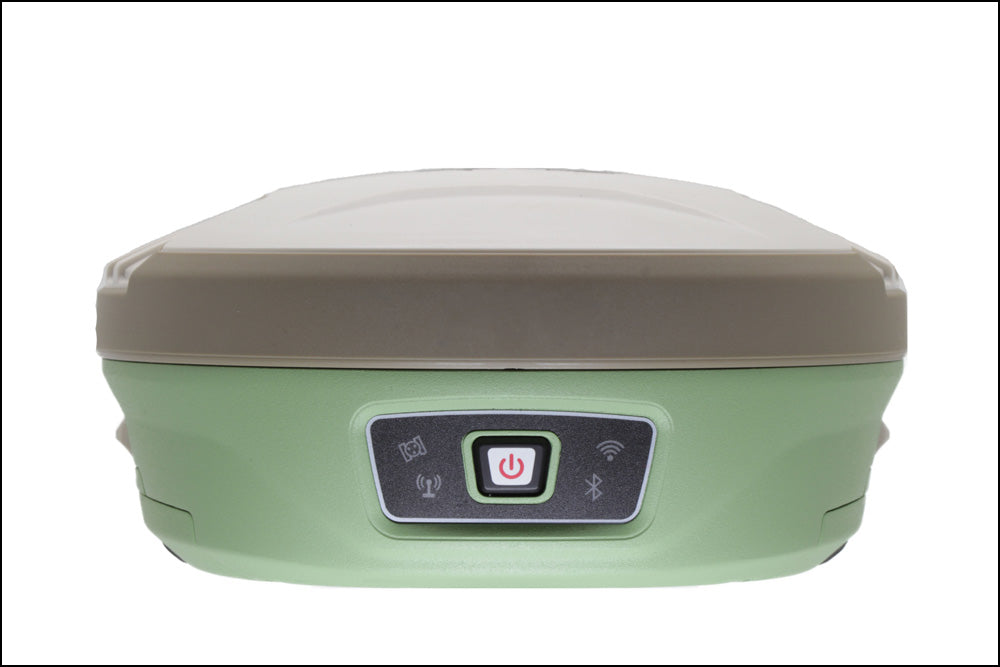

L5 M-Pro complete GNSS equipment
Top model L5 M-Pro has everything required of a modern GNSS receiver. Use it as a rover or set it up as a base station. With both 4G and radio modems, you can receive corrections either via SWEPOS Network RTK service or from a local base station. Under the hood, it is equipped with the latest generation of GNSS cards from Hemisphere that will not disappoint you.
Full-fledged and calibration-free IMU tilt allows you to measure points that were previously impossible to access in a smooth way. It also gives you the opportunity to keep a better eye on your surroundings instead of staring at the dragonfly - detecting potential dangers in time. In addition, there are good opportunities to increase the efficiency of your measuring sessions by avoiding the soldering moment, which otherwise easily slows down the pace.
Dual batteries mean you never have to shut down the equipment to change the battery. In the event of a marathon shift, you simply bring an extra one and change standing up to avoid loss of production. IP68 allows you to measure all year round even in the most extreme conditions.
A professional receiver at the price of an entry-level model. All imaginable functionality is included.
- Calibration-free IMU tilt!
- GPS, GLONASS, GALILEO, BEIDOU satellite system included in the price
- Both 4G and UHF modems
- IP68 protection rating
 |
The price refers to complete measuring equipment with Field Plate, Surpad measuring program, 2 meter telescopic carbon fiber pole, computer holder and pole mount.
Support Agreement
Support agreement is included in the first year. It includes free phone/remote support, access to upcoming software versions, Internet connection with 2GB data traffic/month.
If you buy a support agreement from year 2 onwards, it costs SEK 4,000 per year.
Swepos subscription
To achieve centimeter accuracy with the GNSS receiver, a subscription to the SWEPOS network's RTK service is needed. We rent these for SEK 9,000/year.
Technical specifications
| GNSS | |
|---|---|
| Signals: | GPS: L1CA, L1P, L1C, L2P, L2C, L5 GLONASS: G1, G2, G3, P1, P2 GALILEO: E1BC, E5a, E5b, E6BC BDS: B1i, B2i, B3i, B10C, B2A, B2B, ACEBOC ZSS: L1CA, L2C, L5, L1C, LEX IRNSS: L5 SBAS: 3-channel parallel tracking Atlas |
| Channels: | 800+ |
| ACCURACY | |
|---|---|
| Static measurement: | H 2.5 mm ± 1 ppm V 5 mm ± 1 ppm |
| RTK: | H 8 mm ± 1 ppm V 15 mm ± 1 ppm |
| Tilt: | 2 cm (at tilt angle 60°) |
| Atlas H10: | 8 cm |
| Initialization: | 8s with 99.9% reliability |
| SYSTEM | |
|---|---|
| Operating System: | Linux |
| Storage: | 8 GB MicroSD |
| Wi-Fi: | 802.11 b/g/n |
| Bluetooth: | V2.1+EDR/V4.1 Dual Cl. 2 |
| E-Bubble: | Supports it |
| Tilt: | IMU, 400 Hz refresh rate |
| Audio: | Support TTS Audio Broadcast |
| COMMUNICATION | |
|---|---|
| UHF: | Built-in TRx radio with adjustable output power: 1W/2W. Frequency range: 410 470MHz |
| Protocol: | Support for GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, South, Hi Target |
| Network: | 4G modem compatible with 2/3/4G network |
| PHYSICAL PROPERTIES | |
|---|---|
| Contacts: | 1x TNC (UHF Antenna), 1x 5PIN (Power+RS232), 1x 7PIN (USB+RS232) |
| Buttons: | 1x Power button |
| Diodes: | 4x LED |
| Size: | Ø156 mm x H76 mm |
| Weight: | 1.2 kg with two batteries |
| STREAM | |
|---|---|
| Battery: | 2 pcs 7.2V, 24.5Wh, Hot swap |
| Battery time: | Static: 15 hours RTK: 12 hours |
| External power | Connects via 5PIN connector |
| Voltage: | DC 9-18V |
| ENVIRONMENT | |
|---|---|
| Temperature: | Operation: -45°C to +75°C Storage: -55°C to +85°C |
| IP Rating: | IP68 |
| Case: | Withstands a fall from 2 m against a hard surface mounted on a plumb bob |
