Our latest addition when it comes to manned GNSS equipment. A flexible receiver that has everything required right from the start with both integrated 4G modem and radio modem, which gives you the opportunity to run against, for example, SWEPOS' network RTK service but also against local base/reference stations. The radio modem also has support for sending corrections, so it is possible to set up the M-Max as its own base station and let other manned equipment or machines drive towards it. Just as usual with GNSS receivers from us at L5 Navigation, it comes with licenses for all satellite systems, which guarantees maximum performance even in difficult environments.

Not only does it have a powerful built-in battery that is easily enough for an entire working day, it also supports fast charging via USB-C. Which means that you can conveniently charge in the car or via a power bank. For those of you who haven't quite decided whether you want to be able to measure with a tilting rod or not, there is also the option to upgrade with tilt functionality afterwards.

• License for GPS, GLONASS, GALILEO and BEIDOU is always included -
  Improves performance and allows you to measure in more difficult environments.
• Both 4G and radio modem
  Provides flexibility to be able to run both as a manned GNSS network rover and against a local reference station. But it is also possible to set it up as its own base station and let other GNSS receivers drive towards it - regardless of whether it is other measurement techniques or machine control equipment.
• IP68 -
  Don't let the weather put a stop to production. With IP68, you can measure all year round even in the most extreme conditions.
• Built-in battery with fast charging support-
  Charge directly in the car or via a power bank.
• Light and compact-
  With its low weight and compact construction, it becomes a handy companion
• Calibration-free IMU tilt available as an option
  Allows you to measure points that were previously impossible to access in a smooth way.

Data sheet M-Max

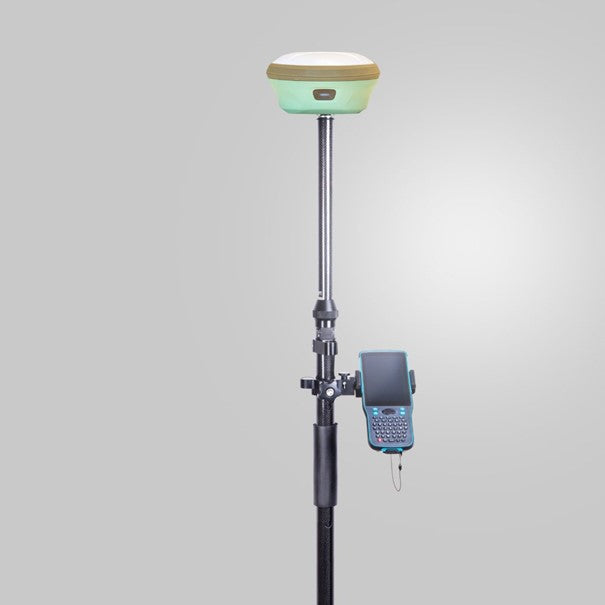

The price refers to complete measuring equipment with Field Plate, Surpad measuring program, 2 meter telescopic carbon fiber rod, computer holder and rod mount.

Support Agreement

Support agreement is included in the first year. It includes free phone/remote support, access to upcoming software versions, Internet connection with 2GB data traffic/month.

If you buy a support agreement from year 2 onwards, it costs SEK 4,000 per year.

Swepos subscription

To achieve centimeter accuracy with the GNSS receiver, a subscription to the SWEPOS network's RTK service is needed. We rent these for SEK 9,000/year.
