L5 M-Lite II
SKU 3131004
Original price
£3,566.32
-
Original price
£3,566.32
Original price
£3,566.32
£3,566.32
£3,566.32
-
£3,566.32
Current price
£3,566.32
Shipping
1-3 days delivery

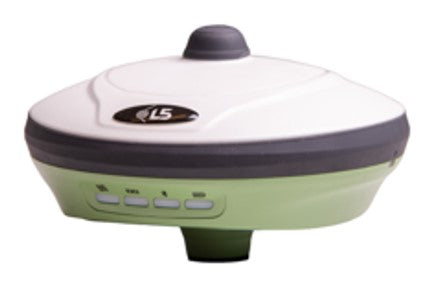

L5 M-Lite II complete GNSS equipment
L5 M-Lite is a pure network rover that does the job day in and day out, no frills.
- GPS, GLONASS, GALILEO, BEIDOU are included in the price
- Full 4G modem
- Built-in battery with fast charging support
 |
The price refers to complete measuring equipment with Field plate, Surpad measuring program, 2 meter telescopic carbon fiber rod, computer holder and rod mount.
Support Agreement
Support agreement is included in the first year. It includes free phone/remote support, access to upcoming software versions, Internet connection with 2GB data traffic/month.
If you buy a support agreement from year 2 onwards, it costs SEK 4,000 per year.
Swepos subscription
To achieve centimeter accuracy with the GNSS receiver, a subscription to the SWEPOS network's RTK service is needed. We rent these for SEK 9,000/year.
Technical specifications
| GNSS | |
|---|---|
| Signals: | GPS: L1C/A, L1P, L1C, L2P, L2C, L5 GLONASS: G1, G2, G3 GALILEO: E1, E5a, E5b, ALTBOC, E6 BDS: B1i, B2i, B3i, B2A, B2B, ACEBOC QZSS: L1C/A, L2C, L5, L1C, LEX |
| Channels: | 800+ |
| ACCURACY | |
|---|---|
| Static measurement: | H 2.5 mm ± 0.5 ppm V 5 mm ± 0.5 ppm |
| RTK: | H 8 mm ± 1 ppm V 15 mm ± 1 ppm |
| Tilt: | 2 cm (at tilt angle 60°) |
| SBAS:: | 50 cm (typical accuracy) |
| Initialization: | <10s with 99.9% reliability |
| SYSTEM | |
|---|---|
| Storage: | 8 GB MicroSD |
| Wi-Fi: | 802.11 b/g/n |
| Bluetooth: | 2.1+EDR/V4.1 Dual |
| E-Bubble: | Supports it |
| Tilt (optional): | IMU, 400 Hz refresh rate |
| COMMUNICATION | |
|---|---|
| UHF: | Built-in Rx radio. Frequency range: 410-470MHz |
| Protocol: | Support for SATEL, PCC-GMSK, TrimTalk TT450S, TrimTalk (4800) TrimMark 3, South, Hi Target, GeoTalk |
| Network: | 4G modem compatible with 2/3/4G network |
| PHYSICAL PROPERTIES | |
|---|---|
| Contacts: | 1x TNC (UHF Antenna), 1x 5PIN (Power+RS232), 1x USB-C |
| Buttons: | 1x Power button |
| Diodes: | Smart LED diode |
| Size: | Ø152 mm x H92 mm |
| Weight: | 1.0 kg |
| STREAM | |
|---|---|
| Battery: | Built-in 7.2V 6900mAh Li-Ion |
| Battery time: | Static: 15 hours RTK: 12 hours |
| External power | Connects via USB-C |
| Voltage: | Support for 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A fast loading |
| ENVIRONMENT | |
|---|---|
| Temperature: | Operation: -30°C to +65°C Storage: -30°C to +80°C |
| IP Rating: | IP68 |
| Case: | Withstands a fall from 2 m against a hard surface mounted on a plumb bob |
