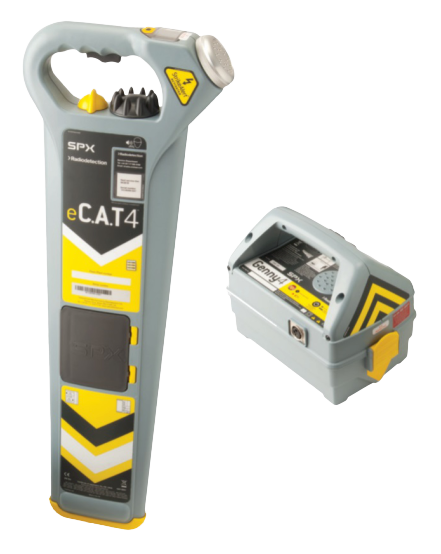

Cable finder CAT4+ & GENNY4

Product information Cable finder C.A.T4+ & GENNY4

C.A.T4+ & GENNY4 is suitable for construction & excavation contractors, industries, electrical installers for easier cable laying. Built in the same format and largely compatible with previous C.A.T versions. With a complete kit C.A.T4+ & GENNY4 has the option of both "passive" search with the receiver to easily detect cables under the ground without sending a signal, as well as active search with GENNY4. C.AT.4+ & GENNY4 is mainly intended for easier cable laying. They are easy to use and very robustly built to ensure many years of use in harsh environments. Receiver C.A.T4+ can also be used with various transmitter probes for tracking plastic & concrete pipes. C.A.T4+ has a digital display with built-in backlight that shows the signal strength and a built-in speaker that provides audible tone. With C.A.T4+ you can also measure the depth of a cable or a transmitter probe. GENNY4 can transmit signal inductively without physical contact with the cable or with direct connection to cable or, for example, VA line. Features added on C.A.T4+ & GENNY4 compared to previous models is, among other things, an additional high frequency > 100 kHz superimposed on the standard frequency 33 kHz and a so-called BOOST function that increases the GENNY4's output power up to 1 Watt. Both of these new functions greatly facilitate the search for cables with a small diameter such as electrical/telecom services and search wire for fiber networks. C.A.T4+ has a dynamic overload protection that enables searching even in areas with a lot of interference.  A complete kit is always delivered complete with receiver C.A.T4+, transmitter GENNY4, direct connection cables, earth spike and padded carrying case. Swedish instructions are located along the sides of the instrument and a Swedish user guide is included.

C.A.T4+ & GENNY4 Technical Data

• 3 passive search modes Electric cable=50 Hz, VLF radio and the AvoidanceScan combination mode
• 2 active frequencies 33kHz and superimposed frequency > 100 kHz for use with GENNY4 or transmitter probes
• Depth measurement to cable or transmitter probe with the value directly readable in meters.
• Uses alkaline batteries, 2 pcs 1.5 Volts R20
• StrikeAlert™, warns of shallow cables (option)
• Swedish instruction labels along the side of the instrument and Swedish user guide

GENNY4 Transmitter, Technical Data

• 2 active frequencies 33 kHz and another high frequency > 100 kHz, both inductive & conductive.
• Switch for continuous or pulsed tone
• Output power 0.1 W, in BOOST mode 1 W.
• Uses alkaline batteries, 4 pcs 1.5 Volts R20
• Protection class IP54
• Direct connection cables with alligator clips, neodymium magnet and earth spike included
