NET20 Plus

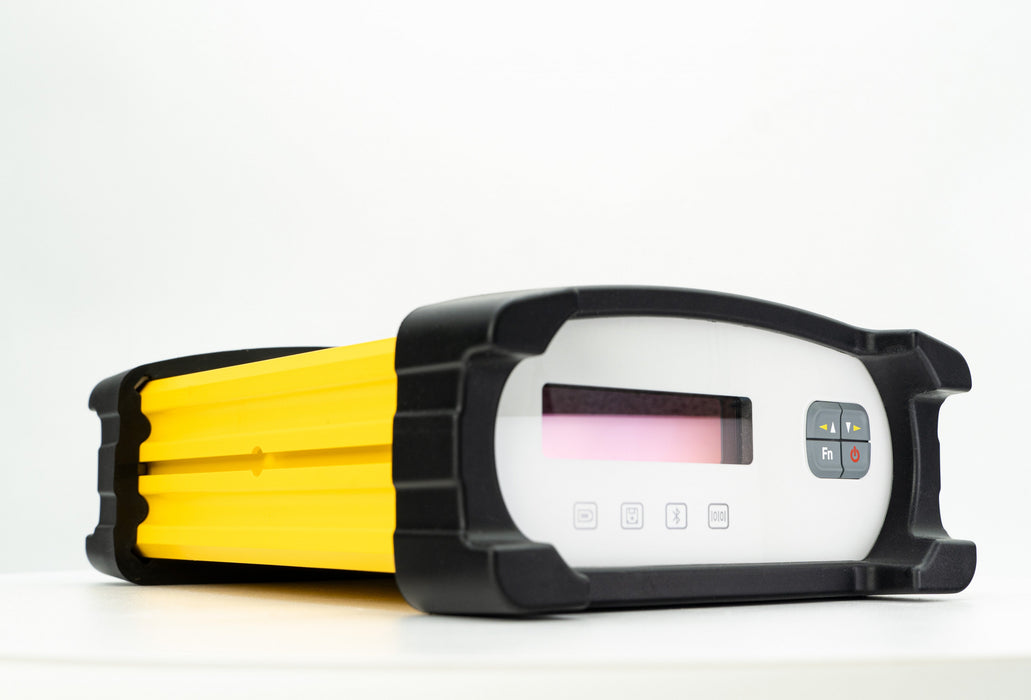

NET20 PLUS

High quality CORS solution

NET20 PLUS is specially designed for high precision CORS reference stations. The rich data interface requires various applications such as monitoring and machine control. The user can use any phone or tablet to configure the device easily from the powerful web interface.

Contains

1 pc NET20 Trimble BD990 board, Inbuilt GSM module

Multi-constellation and multi-frequency
With 336/800 channels of GNSS tracking, NET20 PLUS covers all GNSS signals including GPS, BDS, GLONASS, GALILEO and IRNSS, QZSS to provide stable and reliable data source.

Rich Data Interface
Net20 PLUS supports multiple data interfaces such as serial port, 1PPS, event to require different applications. Its powerful Linux system ensures smooth, worry-free operation.

Rich wireless communication
Net20 PLUS supports WIFI, Bluetooth, Ethernet, SIM card. The user can send or receive data using any method.

Large battery
The 13600 mAh battery lasts up to 12 hours to respond to emergency situations. It also ensures that data is stored securely.

Large memory storage
The internal 32 GB storage space and TF card expansion ensure that the user stores data for a long time. It also supports FTP push to make it more convenient for data management.

L-Band Atlas
Atlas is a service that provides global precision correction service over L-band satellites. With ATLAS subscription, Net20 PLUS can achieve centimeter accuracy without any correction data.

Web interface
It can display position status, configure device, download data and update firmware from the web user interface using any phone, tablet or computer.

Smart alert
It alerts the user via e-mail or SMS when the charger is disconnected, the battery level is too low, the temperature is too high or the memory storage is almost full.

Robust design
The Net20 PLUS main body uses aluminum alloy material to provide strong shock and vibration resistant properties. IP67 certification guarantees operation in various harsh environments.
