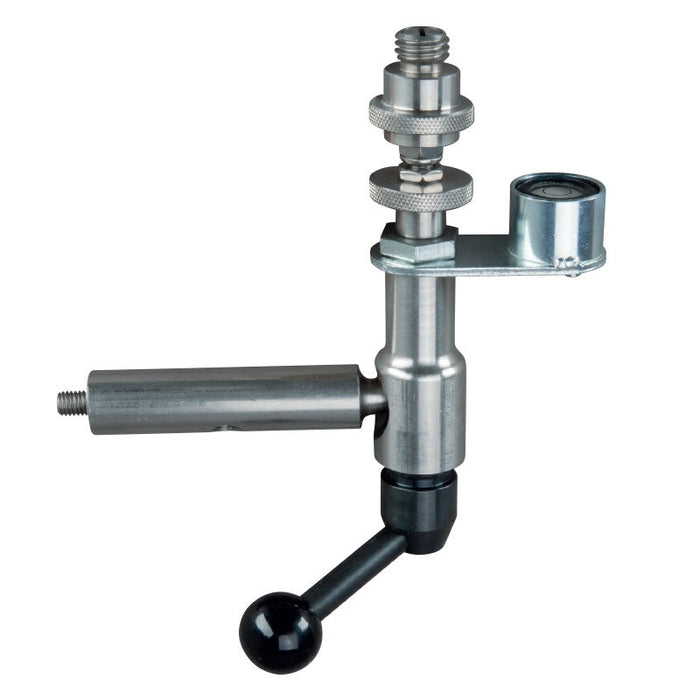

Prism holder 5/8 Holder with ball joint Adjustable dose level and a host adapter for prism with 5/8 mount

Experience has shown that ground points are often lost during construction as wall points. Prisms on poles are always at risk in heavy traffic and tie up relatively large personnel.

With this reflector holder, prisms with high repetition accuracy can be attached directly to structures and precisely aligned. The wall bracket has an M8 internal thread that accepts the ball joint equipped with a reflector holder.

The reflector holder tilts 360 ° radially and can be swiveled by approximately 30 °. Even with gross installation errors, the reflector holder can therefore be precisely adjusted using precisely pre-aligned 35' box levels. The distance to the wall (the face of the bolt to the center of the adapter) is exactly 100mm.
