FTI 300 Thermal camera
SKU GF-800040
Original price
£398.48
-
Original price
£398.48
Original price
£398.48
£398.48
-
£398.48
Current price
£398.48
Shipping
1-3 days delivery

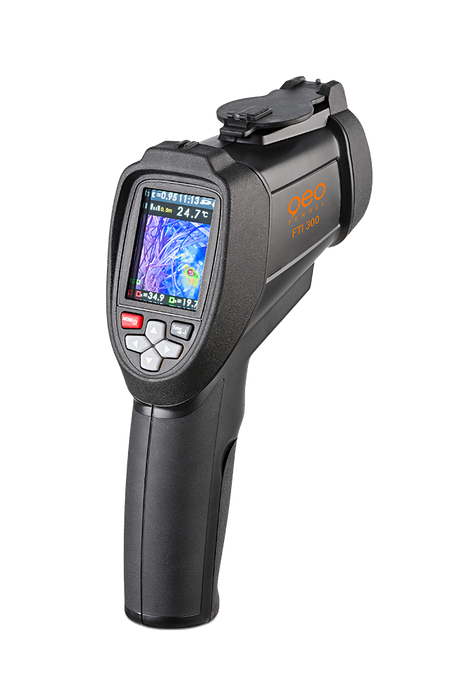

FTI 300 Thermal Camera
Thermal camera for non-contact measurement of surface temperature.
Heating and ventilation installations, building insulation (heat loss), plumbing, electrical, electronics, electromechanical and mechanical engineering, routine maintenance Easily locate hot and cold spots on electrical and mechanical installations.
- Automatic hot/cold spot indication with configurable alarm function
- PIP function for mixing visible and infrared image (0-100%) for optimized orientation in the image
- 6 color palettes
- Memory for 6000 images/data transfer to PC for subsequent analysis
Supplied with:
- Lithium-ion battery and charger
- USB cable for data transfer and charging
- Hard case
Specifications
| Temperature range: | -20°C to +300°C |
| Thermal sensitivity: | < 0.15°C (150 mK) |
| IR sensor resolution: | 32 × 31 pixels |
| Field of View (FOV): | 40° x 40° |
| Show: | 2.2-inch TFT color LCD, 320 x 240 pixels |
| Color palettes: | grayscale (white hot), grayscale (black hot), iron arc, rainbow, rainbow (high contrast), hot metal |
| Additional memory: | MicroSD card 8 GB |
| Language for operations: | DE, EN, FR, ES, IT |
| Focus: | Fixed |
| Accuracy: | ± 2% of reading or ± 2 °C (at 25 °C) |
| Memory size: | 6000 images |
| Measure markers: | 3 (mid, max, min) |
| File format: | .Bmp |
| PC interface: | USB 2.0 |
| PIP (Blending fusion): | IR image with visible image in 6 steps (0 – 100%) |
| Extended size: | Size 205 x 155 x 62 mm |
| Power source: | 3.7V Li-Ion battery |
| Weight: | 410 gr |
