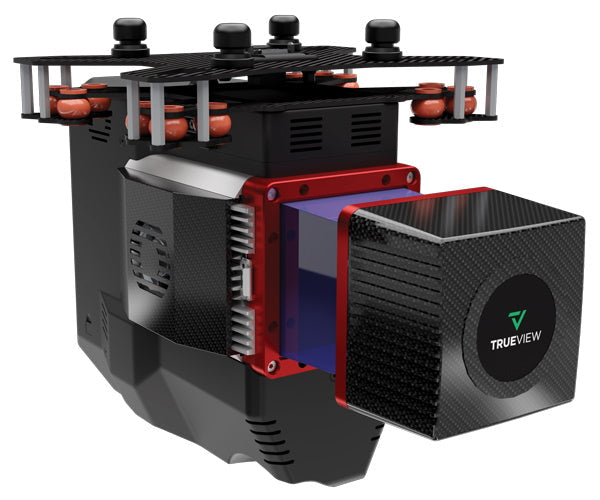

TrueView 655/660 3-Camera Survey Grade LiDAR Sensor
SKU
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
-
£0.00
Current price
£0.00
Shipping
1-3 days delivery
TrueView® 655/660 is GeoCue's third generation RIEGL integration built with miniVUX-3UAV and triple mapping cameras (right, left, nadir) for high accuracy mapping with excellent vegetation penetration and wire detection in a lightweight payload package.
| Specification | Value |
|---|---|
| Data Collection | LIDAR + Imagery |
| LIDAR Scanner | RIEGL miniVUX-3UAV |
| LIDAR Beams/Returns | Up to 5 per outgoing pulse |
| LIDAR Range - usable | 100 m for targets with > 20% reflectivity |
| Positioning and Orientation System | (655) Applanix APX-15 | (650) Applanix APX-20 |
| Pulse Repetition Rate | Up to 300 kHz (selectable)* |
| Accuracy | Better than 3 cm RMSE | (650) Better than 2 cm RMSE |
| Precision | (655) Better than 2.5 cm at 1 σ | (660) Better than 2 cm at 1 σ |
| Camera Sensor | 3x Sony IMX-183: 1'', 20 MP, RGB -> 60 MP per payload |
| Mass | (655) 2.4 kg (660) 2.25 kg |
