Target board for 3D laser scanner different models

Target board for 3D laser scanner different models

The matte surface of these targets enables perfect point reference in many applications, e.g. in system measurement, tunnel construction, forensics / forensic investigations, etc.

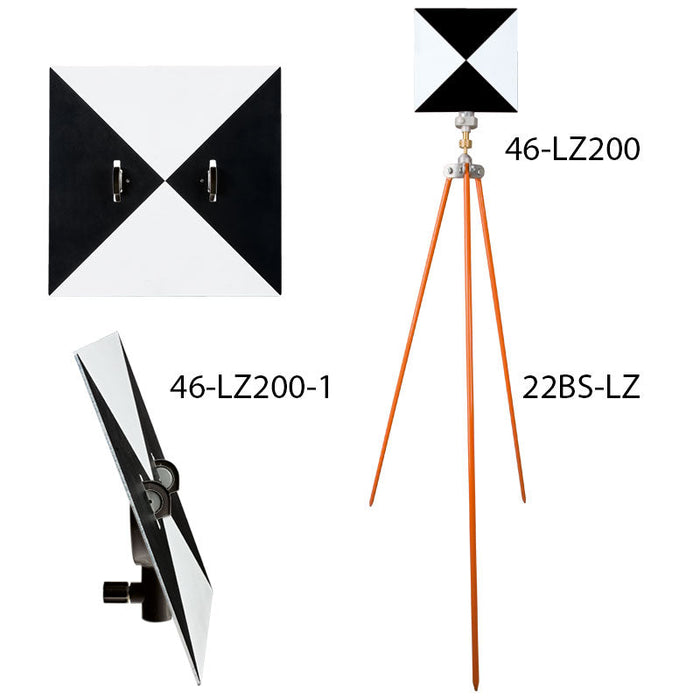

All target marks can be placed on any 12 mm LEICA stud and can be rotated around the vertical axis. The 46-LZ200-1 variant, which can be tilted 70 ° on one side, has the same tilt axis height of 86 mm as the standard LEICA round prisms, so combined total station and scanner measurements are possible without height correction. The 46-LZ200 and 46-LZ200-1 targets have a very robust, solid aluminum target. In the simpler model 46-LZ200-0, on the other hand, the target plate is only made of a plastic composite material and is therefore significantly more sensitive to mechanical loads.

In terms of positioning, our modified pole stand 22BS-LZ with 12mm spigot is a light, cheap and proven alternative to mounting on an instrument stand with tripod and reflector holder.

Select model:

46-LZ200-1 - SEK 927/pc
