Laser scanner sphere magnetic

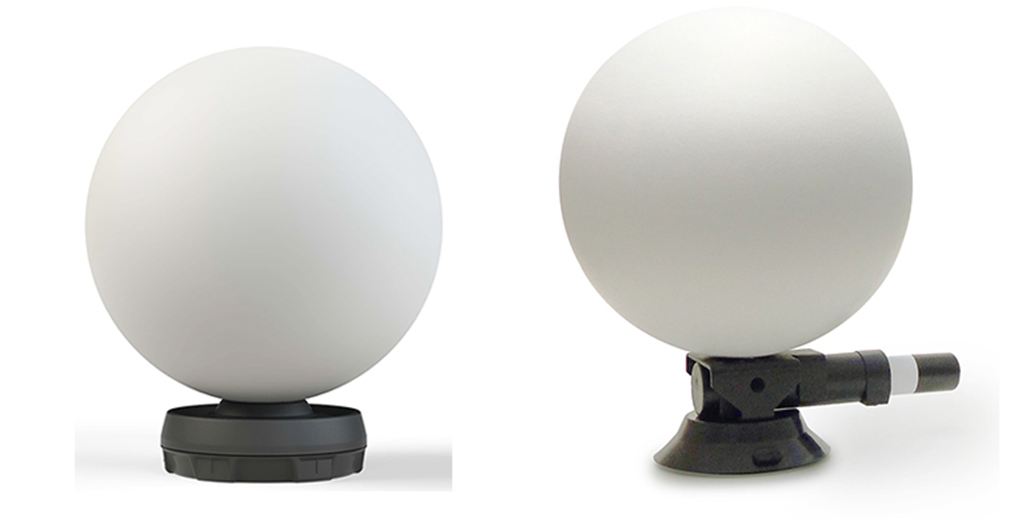

Laser scanner sphere with magnetic base / with suction cup

• Plastic scanning sphere with special matt textured varnish for optimal reflection behaviour.
• Shock resistant plastic. Washable and dishwasher-safe surface
• Fixed points to link multiple viewpoints
• Assigning spatial reference information to a geodataset
• Can be used from any direction
• Suitable for indoor and outdoor use

 Laser scanner sphere with special magnetic base:

• Special magnetic base with 11 magnets for all metal surfaces and other application
• Notched for use with RSFP-X90 fixed points
• For use with RSFP-X95 and RSFP-X96 adapters:

A) This allows the laser scanner sphere to be placed on any standard tripod or trivet. See fig.

B) This allows the laser scanner sphere to be accurately positioned over an RS Mini Prism. See fig.

• The height of the tilt axis of 100 mm corresponds to standard prisms so that the XYZ coordinates can also be determined easily and accurately using a total station

Laser scanner sphere RSLB10SV or suction cup RSSV-X90

• Makes it possible to use the laser scanner sphere on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!

Technical data:

Diameter: Ø 145mm
Tilt axis height: 100mm (RSLB10M)
Scanner sphere weight (sphere only): 250 g

Sphericity: 0.3 mm at 20 ºC

• Accuracy radius: ± 0.15mm at 20ºC
