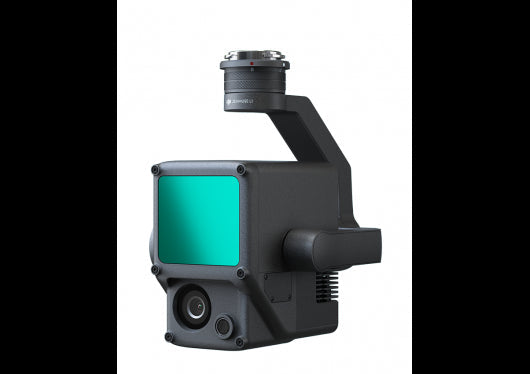

DJI Zenmuse L1

A Lidar + RGB solution for aerial measurement

Zenmuse L1 integrates a Livox Lidar module, a high-precision IMU and a 1-inch CMOS camera on a 3-axis stabilized gimbal. When used with the Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that provides you with real-time 3D data throughout the day, effectively capturing the details of complex structures and delivering highly accurate reconstructed models.

Visualize data on the fly

Livox Lidar Module
- Frame Lidar with up to 100% effective point cloud results
- Detection range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
- Effective scoring rate: 240,000 pts/s
- Supports 3 returns[3]
- Non-repetitive scan pattern, repetitive scan pattern
