Mini Prism

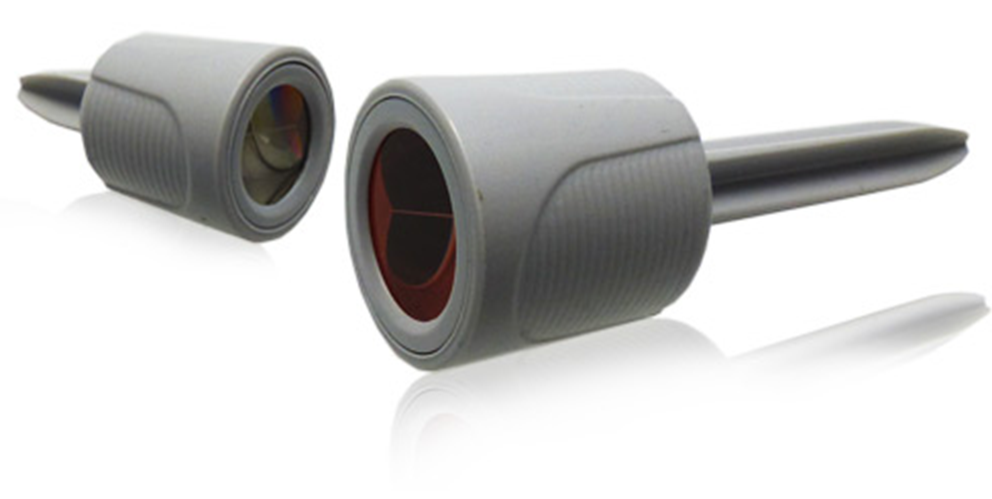

With the mini prisms RSMP10 and RSMP12, surveyors can now easily take measurements in cracks, holes and corners. Fixed dimensions give the surveyor the exact path from the measuring point to the base of the house or the tip of the tip.

In forensics, the prisms are used for precise measurement of bullet holes.

NOTE: For accurate measurements, the prism must be directly aligned with the measuring instrument!

When using the mini prisms to survey settlement, the nails can be removed and thus inserted or glued into the smallest cracks or holes.

These prisms are perfect to use for surveying with measurement points on facades and historic buildings that are barely recognizable to the public.

On concrete or masonry, small holes can be drilled to sink the prisms flush with the surface.

To ensure accurate measurements, the viewing angle should not be more than 25°.

The areas are unit dependent and may be adversely affected by weather and environmental conditions.

RSMP10 with 12.7mm miniprism: Offset: -5.6 (minus 5.6) for Leica: +28.8
RSMP12 with 17.5mm miniprism: Offset: -5.4 (minus 5.4) for Leica: +29.0
