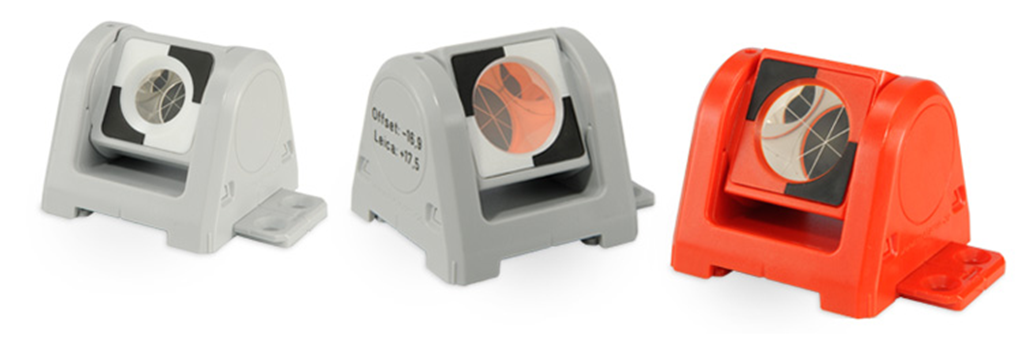

Mini prism with tilt function

Mini prism with tilt function

The mini prisms can be easily glued or fixed with plugs and screws, even on difficult surfaces, such as glass and marble facades, steel beams, rails, gas and oil pipes, etc.

The following accessories are offered for this product:
Fixed point (article RSFP-X80)
Protection cap with or without magnetism (RSPC10, RSPC10M & RSPC20, RSPC20M)

When using total stations

• The prism can always be precisely adjusted with the measuring instrument
• The prism can be turned in a radius of 180 °, which makes it possible to use the same survey point from different directions
• Bridges, facades and many other structures can be monitored more precisely
• Multiple prisms can be combined with each other thanks to the integrated connection system, which makes it possible to map from different directions without having to turn the prism

When using total stations

• Permanent measurements can be carried out during the construction work
• Sedimentation measurements are possible on railway tracks under the load of railway traffic

When using miniprisms RSMP280in ATR mode range of 300 meters to 500 meters is obtained.

When using miniprisms RSMP380 is obtained in the ATR mode ranges 500 meters to 700 meters.

Areas are device dependent and may be adversely affected by weather and environmental conditions.

If there are already known measurement points, total station measurement can achieve intervals of up to 1000 m.
Depending on the focus, ranges of approx. 200 m are achieved for measurements in manual mode.

RSMP280 with 17.5mm miniprism: offset: -11.0 (minus 11) [Leica +23.4], tilt axis height: 30mm RSMP380 with 25.4mm miniprism: offset: -16.9 (minus 16.9) [Leica + 17.5], tilt axis height: 30 mm
