Miniprism can be rotated and tilted

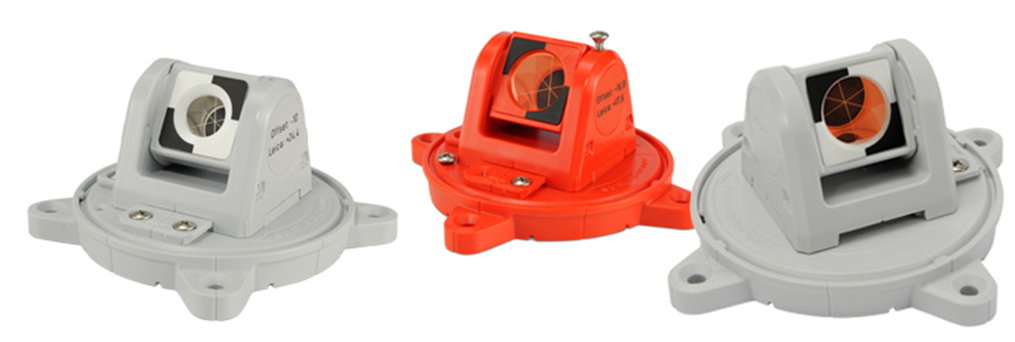

Mini prisms RSMP290 and RSMP290M (M stands for magnetic)

The prisms are Ø 17.5 mm and can be rotated and tilted.

RSMP290 and RSMP390 can be quickly and easily attached even to difficult surfaces, e.g. glass and marble facades, gas and oil pipelines, etc. or attached with plugs and screws. A magnetic version of the base plates is also available for easy installation on steel structures.

The following accessories are offered for this product):
Fixed point (article RSFP-X90)
Protection cap with or without magnetism (RSPC10, RSPC10M & RSPC20, RSPC20M)

When using robotic total stations

• The prism can always be precisely adjusted with the measuring instrument
• The prism can be turned in a radius of 180 °, which makes it possible to use the same survey point from different directions
• Bridges, facades and many other structures can be monitored more precisely
• When robotic total stations are used, permanent sedimentation measurements can be performed during construction

When using miniprism RSMP290 is obtained in ATR mode range of
300 meters to 500 meters.

When using miniprism RSMP390 is obtained in ATR mode range of
500 meters to 700 meters.

Areas are device dependent and may be adversely affected by weather and environmental conditions.

If there are already known measurement points, total station measurement can achieve intervals of up to 1000 m.
Depending on the focus, ranges of approx. 200 m are achieved for measurements in manual mode.

RSMP290 with 17.5mm miniprism: offset: -11.0 (minus 11) [Leica + 23.4], tilt axis height: 45mm RSMP390 with 25.4mm miniprism: offset: -16.9 (minus 16.9) [Leica +17.5], tilt axis height: 45mm
