Fixed point for difficult surfaces, for BIM reference points in tunnels or as a simple and quickly installed reference point on construction sites

The high-precision markers and prisms can then be used, for example, as reference points for total stations. If desired also for scanners or drones with the same XYZ coordinates.

In tunnels or on uneven surfaces, the fixed points are permanently attached by drilling and gluing. When used for a longer period of time, we recommend welding the RSFP-X99. Then appropriate markers can be attached for the survey instruments used in the project.

When you use the offset specified for each marker, the measurement point is always exactly the same! Thus, for example, the reference point can be measured with a total station and then used for scanners or drones as well. Therefore, these products are also often used on BIM construction sites.

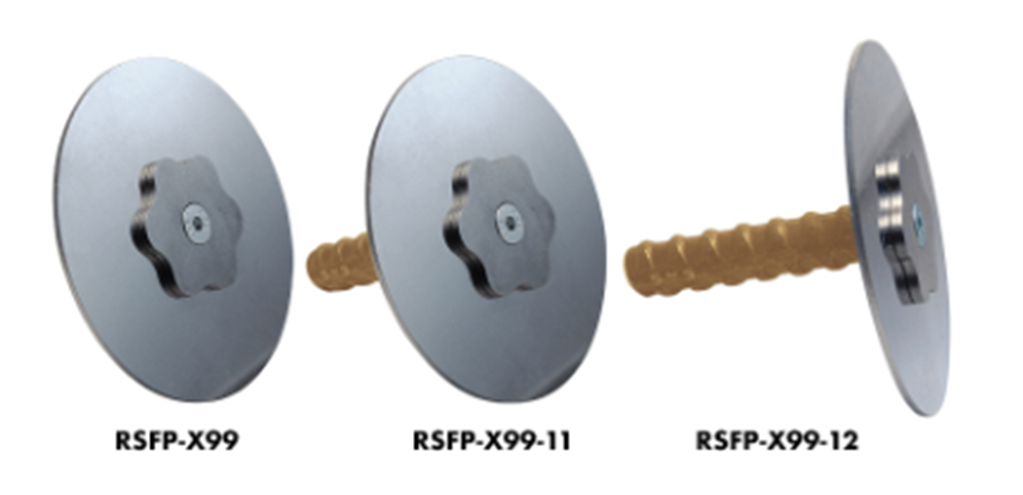

Art no: RSFP-X99 -      Dimensions: 100x42mm - For welding

Art no: RSFP-X99-11 - Dimensions: 100x42x85mm - Screws into anchor sleeve

Art no: RSFP-X99-12 - Dimensions: 100x42x160mm - Screws into anchor sleeve

The illustration shows all products that can be used with the fixed point RSFP-X99-11+12. Magnets in the base plate hold the reflective target or miniprism exactly in the desired location.
