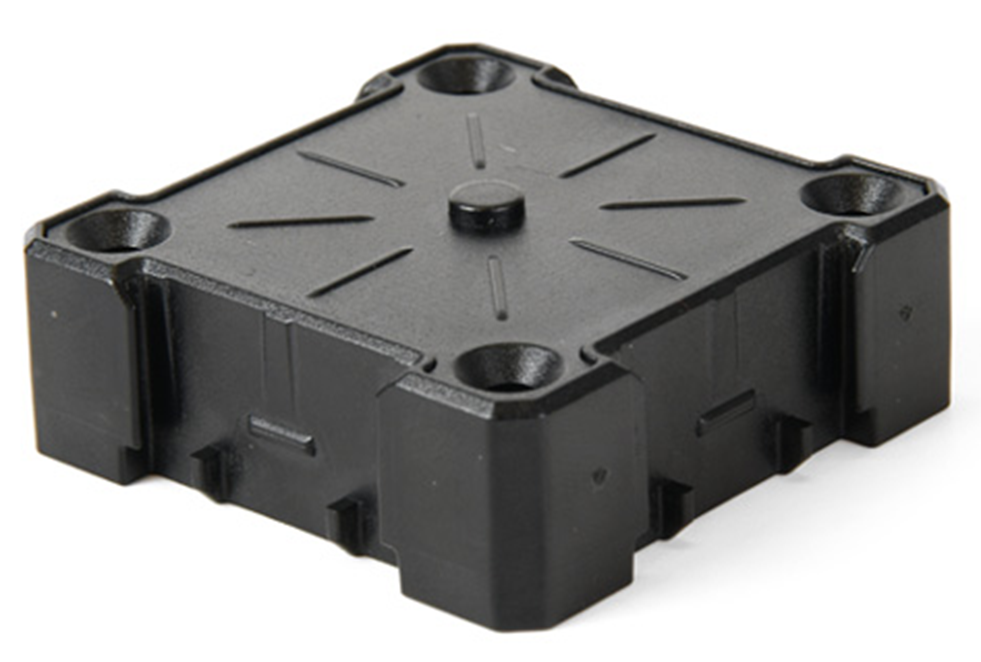

Adapter RSA-5/8-1 with 5/8" thread

With the RSA-5/8-1 adapter, prisms, laser scanner targets and drone targets from Rothbucher can now be easily mounted on a 5/8" thread.

Below are examples of possible combinations

1. RSA-5/8-1 adapter
2. RSMP280 and RSMP380 miniprisms
3. RSL-X80 laser scanner target (combined with RSA-X80g-1 adapter) or
+ RSL580-20drone target (combined with RSA-X80g-1 adapter)

The vertical distance between the prisms and the laser scanner or drone target is exactly 60mm.

For example, if the system is mounted on a tripod, the prism can be precisely calibrated using a total station and then the measurement point can be removed very precisely during the drone overflight.

This combination provides completely new possibilities and a very high accuracy for measurement with drones. In trials with high-precision cameras, accuracies of ±1 mm to a height of 35 meters have already been achieved!

Survey Mark RSFP1 connected with Adapter RSA-5/8-1 with Prism RSMP380S connected with Adapter RSA-X80 with Markers for use with drone RSL580-1
