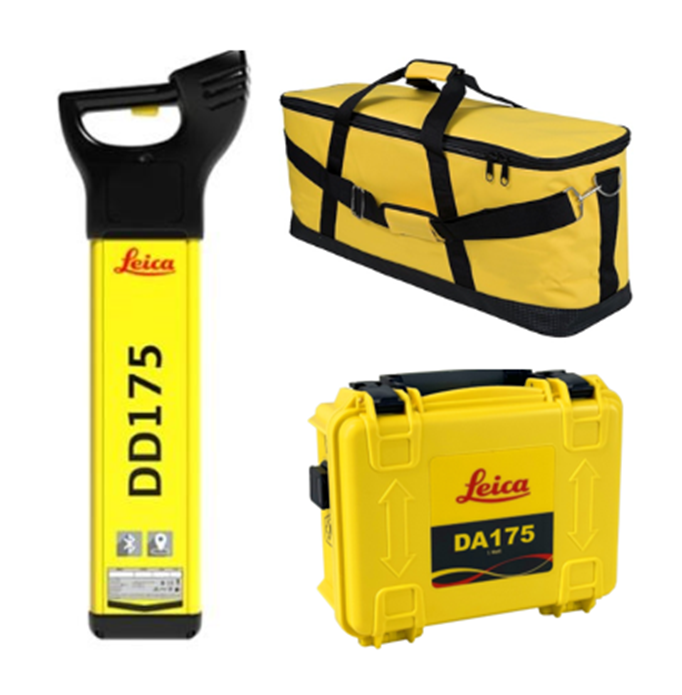

Leica Cable Finder Package DD175 GPS with DA175 + Case
Leica DD175 cable sensor (50Hz) with GPS, Bluetooth, 8GB memory and data logging function and Leica DA175 Signal generator compatible with DD120, DD130, DD175
This signal generator is made cheaper by using standard Alkaline D-Cell (LR20) batteries, the DA175 still has all the frequencies found in the DA220 and DA230. This makes it compatible with all cable detectors. The DA175 is only available in the 1-watt version. The storage case has plenty of room for accessories in addition to the DD175 and DA175.
Choice of four detection signals; select the appropriate frequency for the detection range
The knob on the outside makes it easy to set the Leica DA175 signal generator to whatever mode you want to switch. The low frequencies can only be used if the signal is applied directly to the cable using the clamps
- Product specification DD175
- Technical Specification DD175
- Features DA175
- Available frequencies
- Supplied with
Product specification DD175
- DD175 Cable Detector - Automatic Placement
- GPS, Bluetooth, 8GB memory and data logging function
- Electric, radio and automatic operation
- Transmitter, 33kHz, 8kHz
- Depth detection up to 3 meters (10 feet)
- Good-to-Go™ health check and start test
- Enclosure class IP54 - protection against dust and water
Technical specification DD175
- Power: 50Hz model
- Radio: 15kHz to 60kHz
- Auto: Power, Radio, 33kHz
- Generator mode: 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz
- Depth range: line mode 0.3 m to 3 m / probe mode 0.3 m to 9.99 m
- Depth Accuracy*: 10%
- Degree of protection: IP54
- Operating temperature: -20°C to +50°C
- Power supply: 6 x LR6 (AA) alkaline
- Battery time**: 15 hours
- Weight with batteries: 2.7 kg
- * Depth of a clear signal ** Constant use at 20°C
Features DA175
- Four adjustable output levels
- IP65 protection class (with the cover open)
- Standard output frequency of 33 kHz
- Built-in test function
- Robust, compact and light design)
- Designed for tough field conditions
Available frequencies
- 512Hz: minimum dispersion, very long distances, works only by putting signal with clamps directly on the cable.
- 640Hz: small spread, long distance, works only by putting signal with clamps directly on the cable.
- 8kHz: normal diffusion, medium distance (avoid)
- 33kHz: wide spread, short distances (avoid)
- Therefore, the DA175 can also be used with all Leica cable detectors in the 100 and 200 series
- Leica DA175, 1 Watt Transmitter output frequency 33kHz, 8kHz, 640Hz and 512Hz. runs on 4 alkaline D cells. (cannot be used in combination with the battery in the DA220 or DA230)
- Output adjustable in 4 steps
- IP67
Supplied with
- Leica DD175 cable finder (50Hz)
- User manual
- Alkaline battery pack
- Leica DA175
- Connection terminals
- Ground pin
- Holder with 4x D-cell (LR20) batteries (working time +/- 30 hours)
- Storage bag for easy storage of Leica cable finder and signal generator. Plenty of space for accessories
