Wall fixing stud / Horizontal stud

Wall fixing stud Horizontal stud 19 mm with spherical head, in stainless steel

• NOTE! Wall fixing studs are only available as drilled!
• Placed horizontally in a wall or similar
• Pre-drill and feel free to use chemical anchor compound (see art. no. 2612058) to ensure the position of the dowel
• Thickness of the stud: 19 mm
• Drive in the stud using a special mandrel for fixed studs (see art. no. 1413)
• When wrapping, the stud expands at the bottom with the help of a cone/wedge
• We have chosen to make the cone/wedge at the bottom of the stud extra wide, which makes driving in much easier and it is sufficient to use a rubber hammer (see item no. 23D-4)

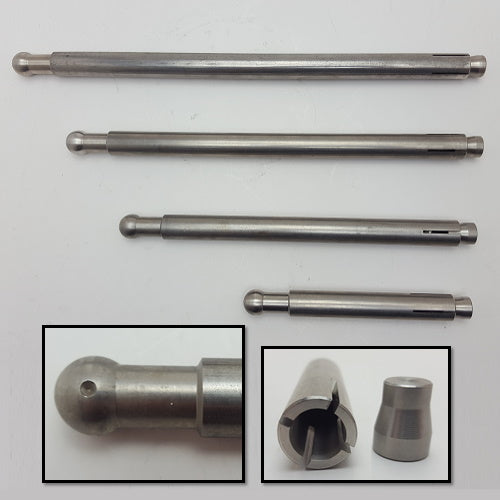

• Drilled centering hole is "on the side" of the ball at the top, see picture (if you don't want the hole, turn the stud so the hole ends up downwards.)
• Wall fixing stud material: stainless steel
• Different lengths: choose between 4 different lengths (150/250/300/350mm) in the drop-down menu
• Tone/wedge is always included
