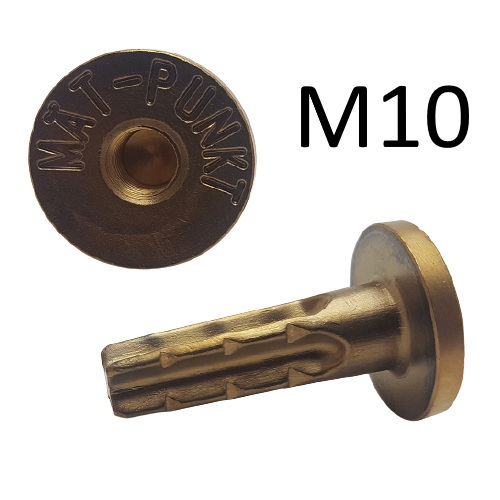

Brass wall bolt for wall, M10

Brass wall bolt for wall, M10

• Flat brass stud with collar with internal M10 thread.
• Marking: "MEASURING POINT"
• Length: 46 mm
• Head: Ø 30 mm
• Drill dimension: Ø 10-12mm
• Buy for drill, item no:11H-SBOand Protective pin item no:M10x10mm
• The wall bolt is suitable for fixing in concrete and brick walls.
• After drilling, the bolt is placed in the hole and glued with chemical anchors or chemical mortar.
  • See kemankare Anchor mass ECM Essve, art.nr. 2612058.
• For mounting various measuring arms. See art. no. 4124 and 8912.
• The brass sleeve is used, among other things, together with the Unikonsol system (M10). Here you will find assembly instructions brass sleeve with collar
