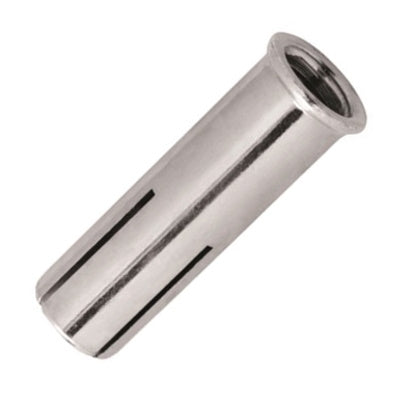

Impact anchor Sormat LAL+ M10 with collar

Strike anchor Sormat LAL+ M10 with collar

• Designation: LAL+
• Thread diameter (M): M10
• Drill diameter: 12 mm
• Length: 40 mm
• Surface treatment: Electro-galvanized for indoor use
• Thread length: 16 mm
• Drill depth: 43 mm
• Mounting depth: 40 mm
• Material: Carbon steel
• Materials: Cracked concrete (M6,M8, M10) - Uncracked concrete - Natural stone - Solid brick (M6,M8) - Hollow deck
• Application: Suspension systems - Pipelines - Air ducts - Sprinkler systems - Cable ladders - Machines - Brackets - Roof trusses
• Approved according to: ETA-13/0441 (M6-M10) yes ETA-13/0442 (M8-M16) + CE
