Triangelram "Klimax"

Triangle frame "Klimax"

The triangle frame in the Klimax product category is for measuring floor/wall points

• For stainless steel Klimax bases, HO = 25 mm (center ball Ø 1.5")
• 3 rubberized feet to prevent the frame from sliding
• The material is made of anodized aluminum
• Edge length 120mm

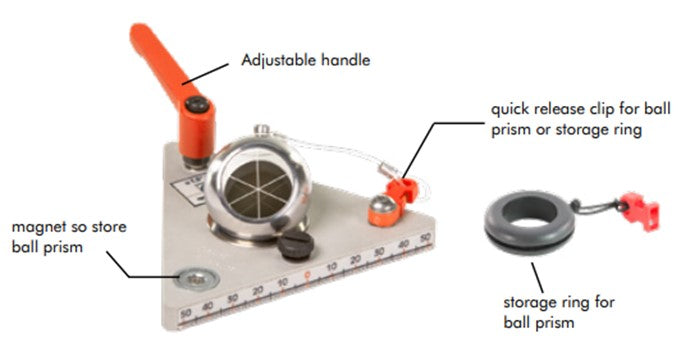

• One corner of the frame is equipped with a magnetic surface for ball prisms
• Rubber ring as extra (non-magnetic) storage option for the ball. It is attached to the frame with a quick lock

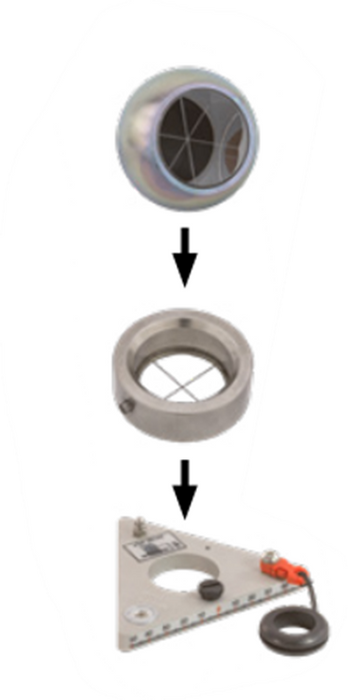

On the wall, it is recommended to use a spherical prism with fall protection (see picture below). This can be attached to the frame instead of the storage ring via the quick coupling. Art no: 1444
