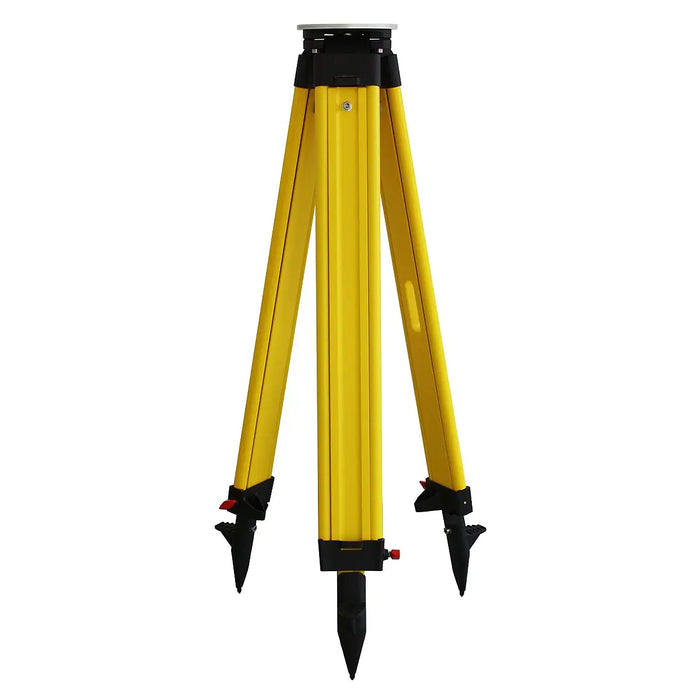

NESTLE Tripod wood Heavy duty

Key Features

• Heavy-duty wooden surveying tripod
• Circular, flat metal head plate
• Self-closing tripod legs
• Designed for high-precision surveying applications
• Specially treated wood helps prevent water penetration
• Good damping properties to help absorb vibrations
• 5/8" instrument connection
• Clamping screws for securing the tripod
• Working range of approximately 93–168cm
• Suitable for theodolites, total stations and robotic stations

Technical Specifications

• Product Type: Heavy-Duty Wooden Surveying Tripod
• Model: NESTLE TW246-6

• Material: Wood
• Working Range: 90–170cm at 1m tip distance
• Transport Length: 108cm
• Weight: 6.2kg

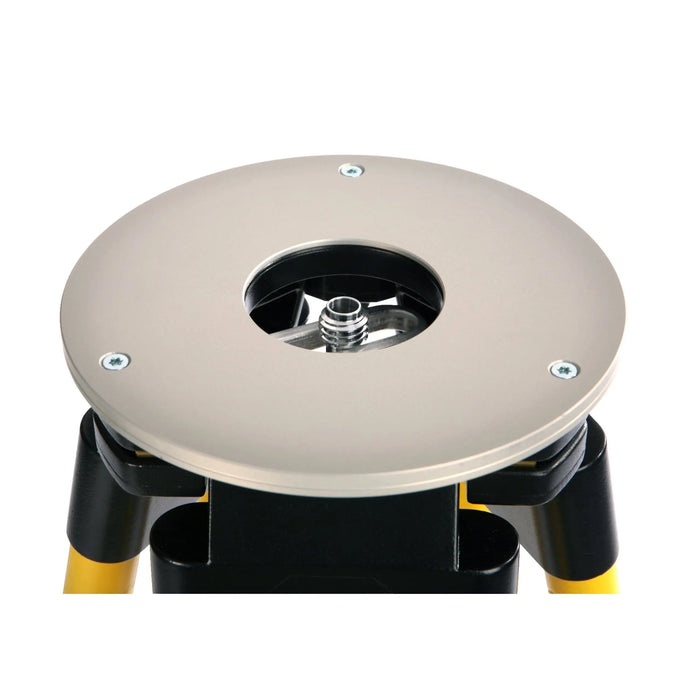

• Head: Flat, metal, round
• Connection: 5/8"
• Clamping: Clamping screws

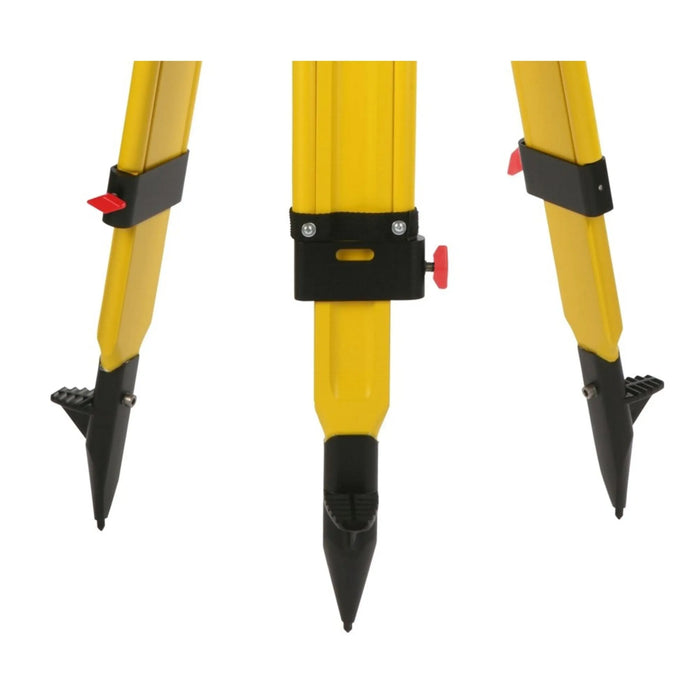

• Legs: Self-locking

Product Overview

The NESTLE Tripod Wood Heavy Duty is a robust wooden surveying tripod designed for applications where stable, high-precision instrument setups are required. Its wooden construction provides good damping properties, helping to absorb vibrations during surveying work.

The tripod features a round, flat metal head plate, 5/8" connection and clamping screws, while the self-locking mechanism secures the legs during carrying and transport to help prevent accidental unfolding. NESTLE also uses a special treatment on the wood to help prevent water penetration and reduce swelling.
