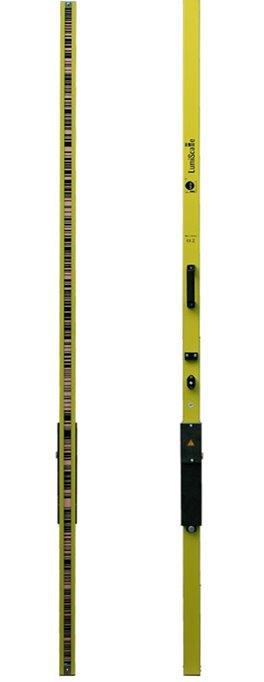

NEDO Lumiscale
With the NEDO LumiScale for all common digital levels, you can work efficiently and flawlessly even in complete darkness.
The accuracy is between conventional leveling strips according to DIN 18703 and invar slats according to DIN 18717. Unlike external lighting, the pitch is backlit with an electro-luminescent film.
This leads to uniform and shadow-free lighting, effectively preventing measurement errors. Robust aluminum box profile, stainless fittings, illuminated 12' can level. The ergonomically shaped carrying handle is located in the bat's center of gravity and enables energy-saving and pleasant transport.
The delivery includes a padded protective bag, the battery pack with a lifespan of approx. 5.5 h and the 230V charger.
| Division: | Barcode |
| Split beam expansion coefficient: | αTH<18 ppm/°C |
| Pitch accuracy: | ?L = ±(0.2 mm + 2L * 10-4) |
| Lighting system (backlight): | Electroluminescence |
|
Life of the lighting unit (life): |
6,000 hours |
| Illuminated pitch surface: | 2 125 x 25mm |
| Power supply (removable NiMH battery): |
14.4 V, 2500 mAh |
| Class: | IP 54 |
| Column body: | Aluminium box profile 54 x 25 mm |
| Measurements, weight: | 2,200 x 70 x 61 mm, about 4.0 kg |
Standard accessories: LumiScale latte, padded protective case, battery, 230V charger
