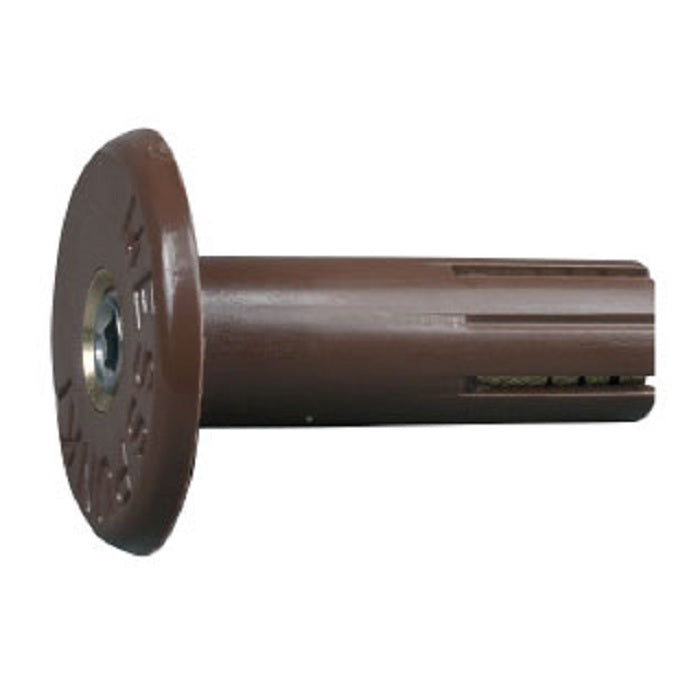

Wall bolt with M8, BROWN
Shipping
1-3 days delivery
Key Features
- Wall bolt for height and position control
- Also known as an expander or locking screw
- Brass construction with brown plastic cover
- Requires a 10–12mm diameter drilled hole
- Supplied M8 Allen screw expands and secures the bolt in the drilled hole
- Can alternatively be installed using chemical anchors or chemical mortar
- Compatible with adapters for many commonly used surveying prisms
- Marked with MESS-POINT
- Can be combined with Screw Bolt Head, Art. No. 14H-1
Technical Specifications
- Product Type: Wall Bolt / Expander Bolt
- Connection: M8
- Material: Brass with brown plastic cover
- Drill Hole Diameter: 10–12mm
- Installation Options: Expansion using supplied M8 Allen screw or chemical anchoring
- Inscription: MESS-POINT
- Compatible Accessory: Screw Bolt Head, Art. No. 14H-1
- Hex Key: 11R2-ST
- Recommended Chemical Anchor: ECM Essve, Art. No. 2612058
Product Overview
The Wall Bolt with M8 – Brown is designed for height and position control and provides a fixed mounting point for compatible surveying accessories and prism adapters.
Manufactured from brass with a brown plastic cover, the wall bolt is installed into a 10–12mm diameter drilled hole. Once positioned, the supplied M8 Allen screw is tightened to expand the bolt and secure it within the hole.
Alternatively, the wall bolt can be installed using a chemical anchor or chemical mortar. The specified ECM Essve anchor compound (Art. No. 2612058) can be used for this installation method.
The wall bolt can be used with the appropriate adapter for many common surveying prisms, providing a practical mounting point for surveying and monitoring applications.
The bolt is marked MESS-POINT and can also be used with the Screw Bolt Head, Art. No. 14H-1. Combining the two components allows the head to be moved between compatible wall bolt attachment points.
