NESTLE Pole Holder

Key Features

• Base holder for the NESTLE HB-S field computer carrier system
• Designed for mounting to prism and GNSS poles
• Double-C screw clamp for securing the holder to the pole
• Suitable for pole diameters from 22–32mm
• 25mm ball connection for HB-S computer carriers
• Designed to provide even clamping pressure on carbon poles
• Compatible with computer carriers from the NESTLE HB-S series
• Allows the mounted field computer to be rotated and tilted

Technical Specifications

• Product Type: Pole Holder / Base Holder
• Manufacturer: NESTLE
• System: HB-S
• Application: Field computer mounting on prism and GNSS poles
• Pole Clamping: Double-C screw clamp
• Compatible Pole Diameter: 22–32mm
• Carrier Connection: Ball Ø25mm
• Compatible Carriers: NESTLE HB-S computer carriers

Product Overview

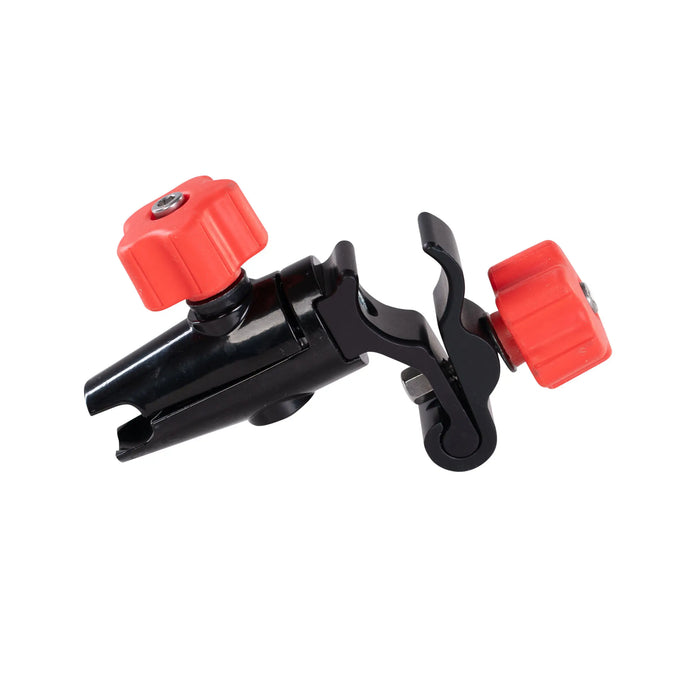

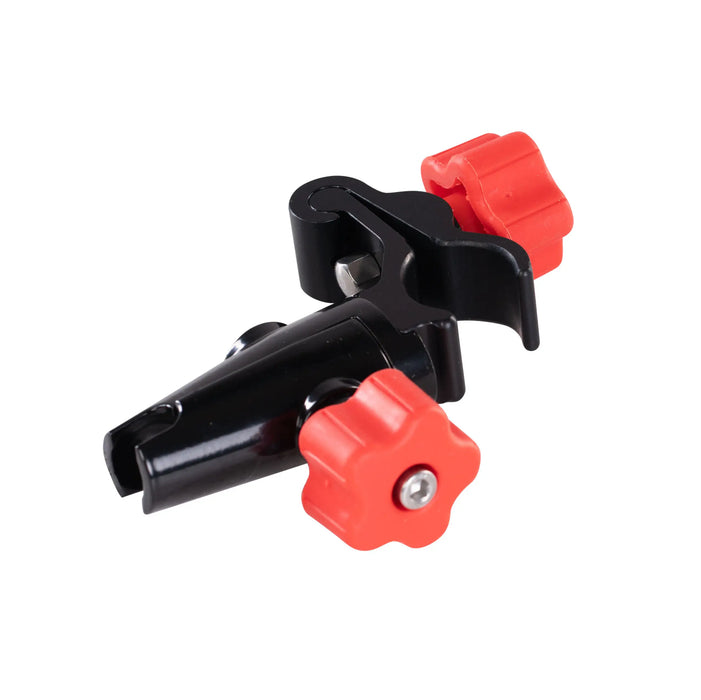

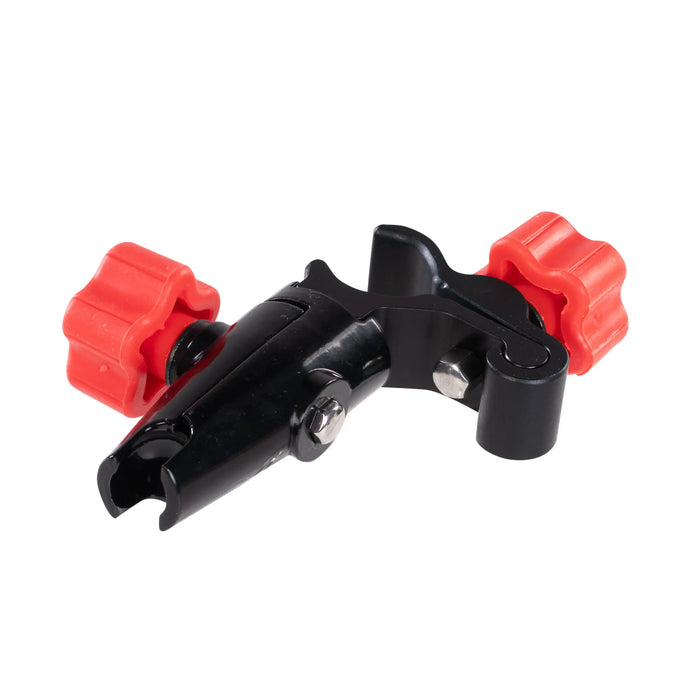

The NESTLE Pole Holder is the base holder for the NESTLE HB-S carrier system, providing a mounting point for compatible field computer carriers on prism and GNSS poles.

The holder uses a double-C screw clamp and is suitable for poles with diameters between 22 and 32mm. The double-C design provides clamping pressure across the pole and is suitable for carbon poles.

The base holder features a 25mm ball connection for the HB-S computer carriers. The short ball-and-claw connection allows a compatible field computer carrier to be attached to the base holder and provides the ability to rotate and tilt the mounted field computer.
