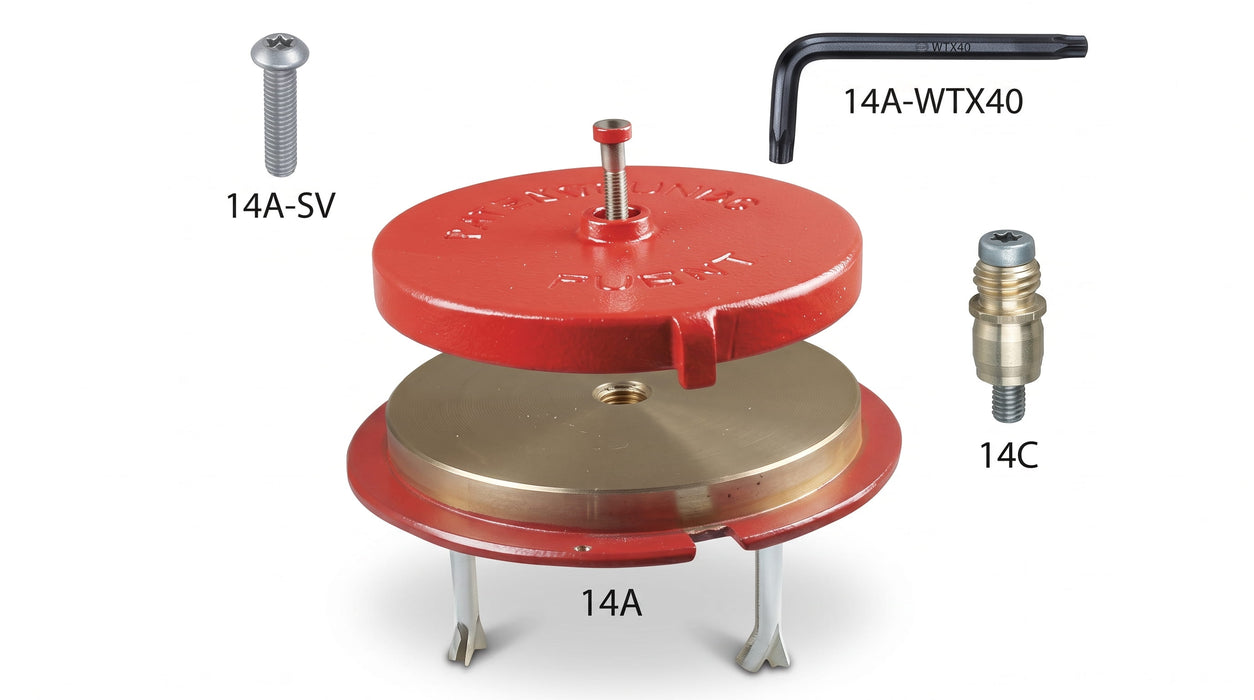

Pillar head end plate with cover and mounting material (14A)
Shipping
1-3 days delivery
The Goecke 14A Pillar Head End Plate is a brass pillar plate supplied with a red powder-coated protective cover and mounting material. Designed for level-stable forced centring applications, the plate provides a fixed mounting point for compatible surveying equipment.
Key Features
- Goecke 14A pillar head end plate
- Brass construction
- 160mm plate diameter
- Supplied with red powder-coated protective cover
- Includes mounting material
- Includes three M10 x 80 anchor bolts
- Includes three M6 grub screws for levelling
- Includes Allen screw for securing the cover
- Supplied with installation instructions and drilling template
- Designed for level-stable forced centring applications
Technical Specifications
- Product Type: Pillar head end plate
- Manufacturer: Goecke
- Model: 14A
- Plate Material: Brass
- Plate Diameter: 160mm
- Protective Cover: Red powder-coated
- Anchor Bolts: 3 x M10 x 80mm
- Levelling Screws: 3 x M6 grub screws
- Application: Level-stable forced centring
Product Overview
The Goecke 14A Pillar Head End Plate is designed for use in level-stable forced centring applications and provides a fixed mounting point for compatible surveying equipment. The plate is manufactured from brass and measures 160mm in diameter.
The 14A is supplied with a red powder-coated protective cover and the required mounting material, including three M10 x 80 anchor bolts and three M6 grub screws for levelling. An Allen screw for the cover, installation instructions and a drilling template are also included.
The Goecke 14C centring bolt is not included with the 14A and is available separately.
