NESTLE Tripod wood TR-246-7

Key Features

• NESTLE TR-246-7 heavy-duty wooden tripod
• Bright red fittings for improved visibility
• GeoMax logo
• Wooden construction with good damping properties
• Self-locking tripod legs

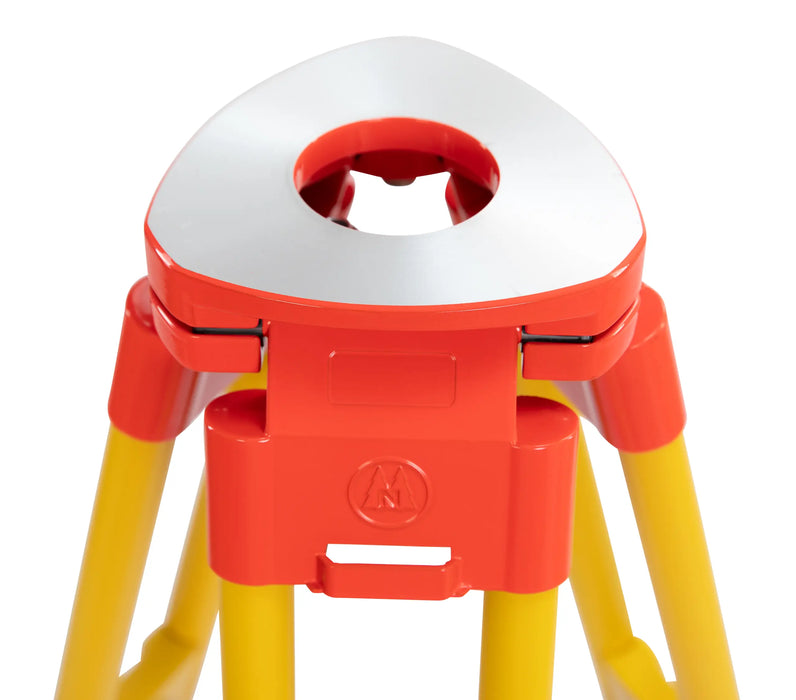

• Flat triangular head
• 5/8" connection

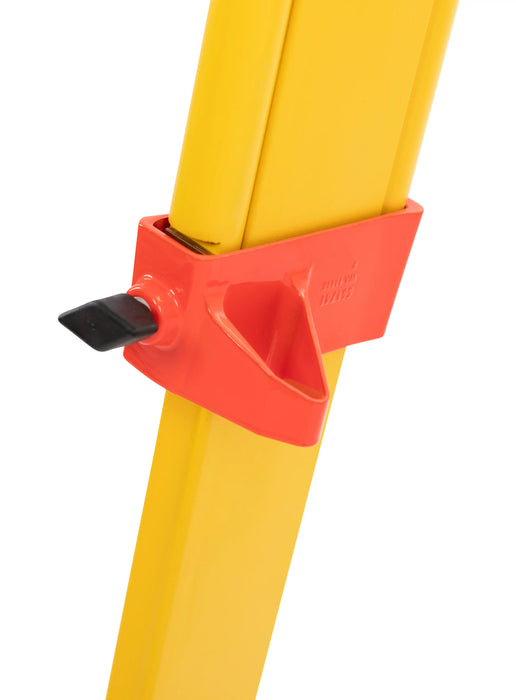

• Clamping screw
• Designed for high-precision surveying applications

Technical Specifications

• Product Type: Heavy-Duty Wooden Surveying Tripod
• Model: NESTLE TR-246-7
• Material: Wood
• Working Range: 90–170cm at 1m tip distance
• Transport Length: 107cm
• Weight: 6.4kg
• Head: Flat, triangular
• Connection: 5/8"
• Clamping: Clamping screw
• Legs: Self-closing
• Fittings: Bright red

Product Overview

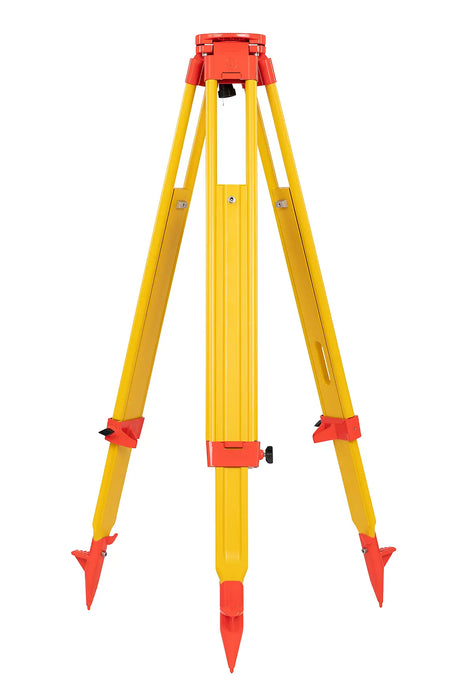

The NESTLE TR-246-7 Wooden Surveying Tripod is a heavy-duty wooden tripod designed for surveying applications requiring stable instrument setups. Its wooden construction provides good damping properties, helping to absorb vibrations during measurement work.

The tripod features a flat triangular head, 5/8" connection, clamping screw and self-locking legs. The bright red fittings provide increased visibility, while the self-locking mechanism helps secure the legs when the tripod is being carried or transported.
