NESTLE Baseholder H2C for poles
Shipping
1-3 days delivery
Key Features
- Genuine NESTLE H2C base holder
- Designed for mounting to compatible prism and GNSS poles
- Suitable for poles with diameters from 22–32mm
- Double-C clamp with screw for securing the holder to the pole
- Designed to provide even clamping pressure on the pole
- Forms the base of the NESTLE H2C computer-holder system
- Compatible with H2C computer carriers
- 250g weight
Technical Specifications
- Product Type: H2C Base Holder for Poles
- Manufacturer: NESTLE
- Product Number (PID): 14814001
- Compatible Pole Diameter: 22–32mm
- Clamping: Double-C clamp with screw
- Weight: 250g
- System: NESTLE H2C
Product Overview

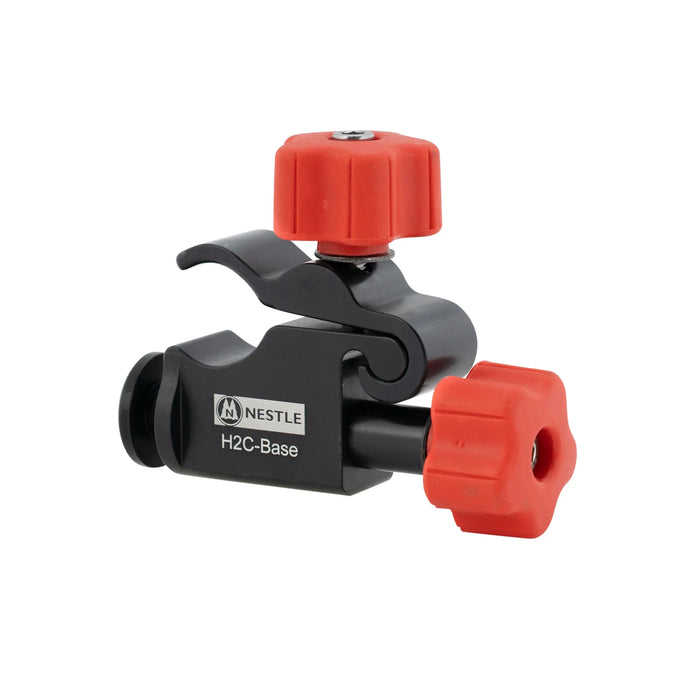

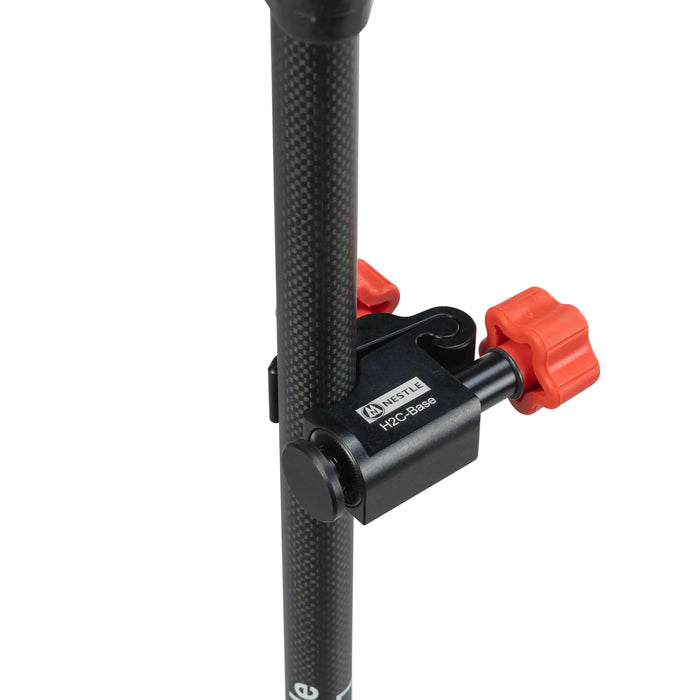

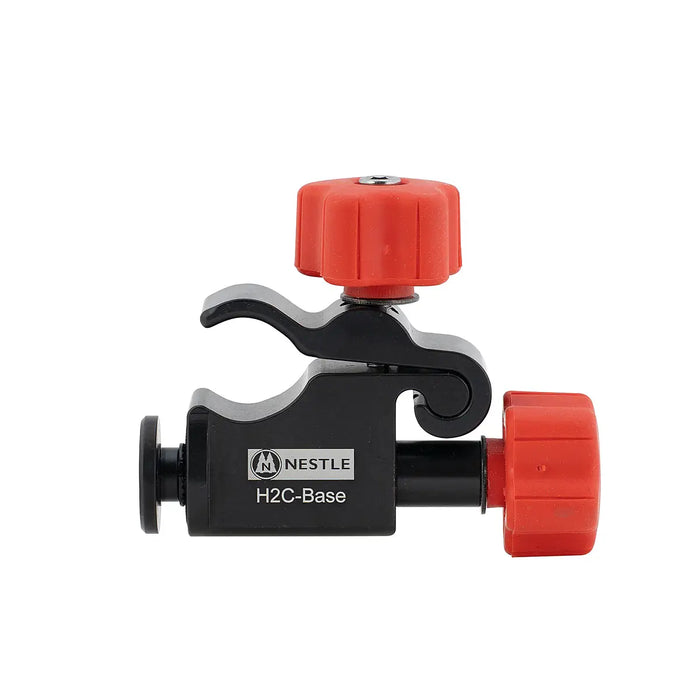

The NESTLE Base Holder H2C for Poles is the base component of the NESTLE H2C computer-holder system, designed to attach to compatible prism and GNSS poles.
The holder uses a double-C clamp with a screw and is suitable for poles with diameters between 22 and 32mm. NESTLE states that the double-C clamp provides even pressure distribution on the pole and is particularly suitable for carbon poles.
The H2C system consists of a base holder and a computer carrier, allowing different compatible computer carriers to be used with the same base holder. The carrier connects to the base holder using the H2C system's toothed-disc coupling, allowing the viewing angle of the mounted field computer to be adjusted.
