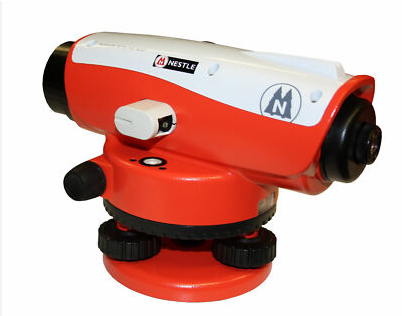

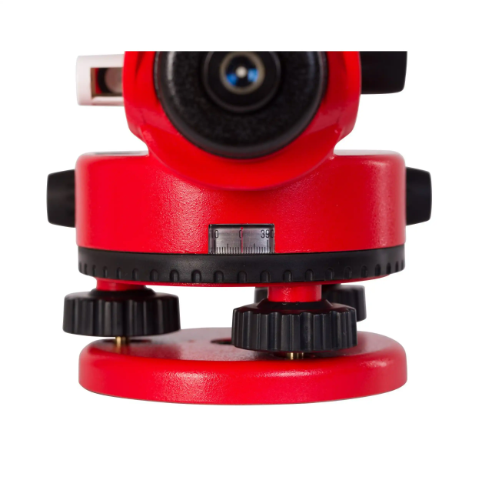

NESTLE Automatic level set NLS 24

Key Features

• Complete automatic level set ready for immediate use
• Professional 24x magnification optical level
• Magnet-dampened automatic compensator
• Accuracy of ±2.0mm per 1km double levelling
• Superior optics for bright, clear viewing
• Horizontal angle measurement
• Optical distance measurement using stadia lines
• Lightweight aluminium levelling tripod included
• 5m telescopic levelling staff with carry bag and circular vial
• IP65-rated dustproof and splash-proof housing
• Supplied in a durable protective carry case

Technical Specifications

• Magnification: 24x
• Objective Aperture: 36mm
• Accuracy: ±2.0mm per 1km double levelling
• Compensator: Magnet dampened
• Shortest Focusing Distance: Approx. 0.9m
• Multiplication Constant: 100
• Horizontal Circle: 400 gon
• Protection Rating: IP65
• Dimensions: 220 × 140 × 150mm
• Instrument Weight: 1.7kg
• Tripod: Aluminium levelling tripod
• Levelling Staff: 5m telescopic staff

Product Overview

The NESTLE NLS 24 Automatic Level Set is a robust, professional levelling kit designed for accurate height transfer, site levelling and construction surveying. Supplied complete with a 24x automatic level, aluminium levelling tripod and 5m telescopic levelling staff, this ready-to-use package provides everything required for precise levelling straight from the carry case.
