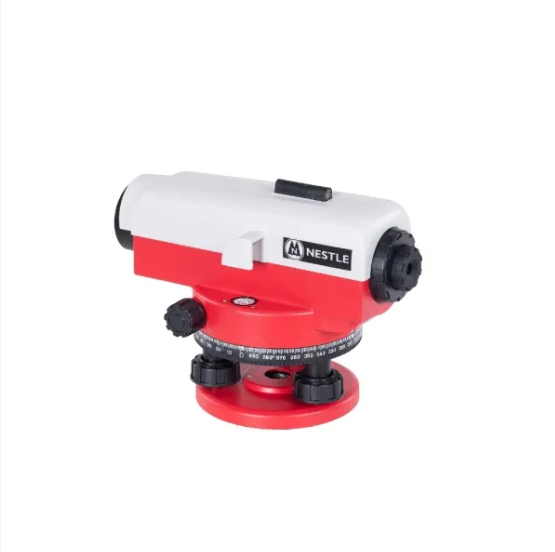

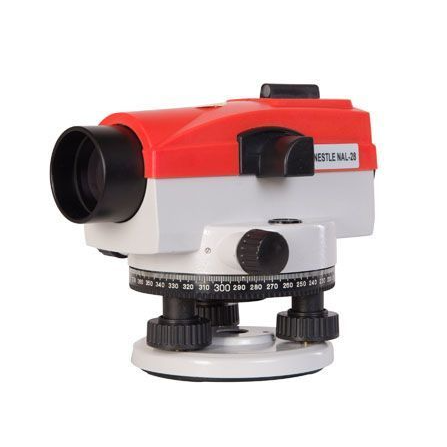

NESTLE Automatic level set NAL 28

Key Features

• Complete automatic level set ready for immediate use
• Professional 28x magnification optical level
• Air-damped automatic compensator
• Accuracy of ±1.5mm per 1km double levelling
• Bright, high-quality optics for clear viewing
• Horizontal angle measurement
• Optical distance measurement using stadia lines
• Lightweight aluminium levelling tripod included
• 5m telescopic levelling staff with carry bag and spirit level
• IP54-rated dust and splash protection
• Supplied in a protective carry case

Technical Specifications

• Magnification: 28x
• Accuracy: ±1.5mm per 1km double levelling
• Objective Aperture: 40mm
• Compensator: Air-damped
• Shortest Focusing Distance: 0.5m
• Multiplication Constant: 100
• Horizontal Circle: 400 gon
• Protection Rating: IP54
• Tripod: Lightweight aluminium levelling tripod
• Levelling Staff: 5m telescopic staff
• Dimensions: 200 × 135 × 140mm
• Instrument Weight: 1.45kg

Product Overview

The NESTLE NAL 28 Automatic Level Set is a professional levelling kit designed for accurate height transfer, construction surveying and site levelling. Supplied with a 28x automatic level, lightweight aluminium levelling tripod and 5m telescopic levelling staff, this complete package provides everything needed to begin work immediately.
