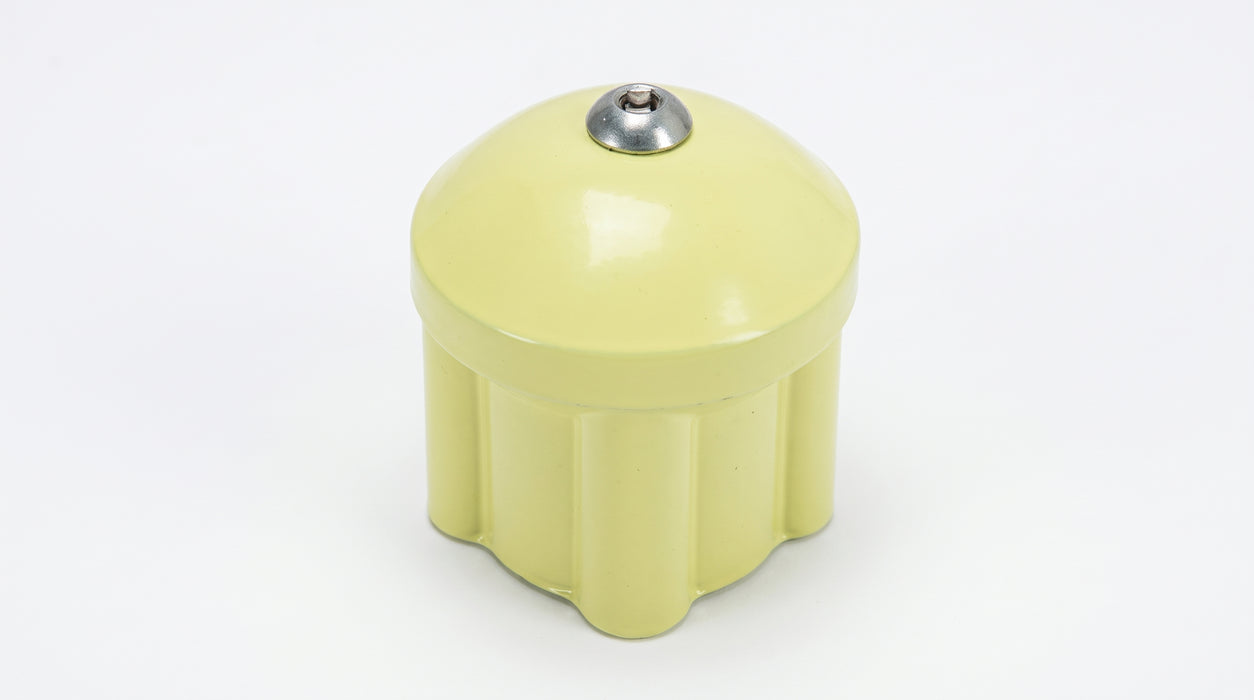

End head Ø 60 mm, height 65 mm, with M8 female thread
Shipping
1-3 days delivery
Goecke end head for aluminium cross anchors, measuring 60mm in diameter and 65mm in height. Manufactured from weather-resistant aluminium chill casting and finished with a yellow powder coating, this end head features an M8 female thread for attaching compatible prism adapters and accessories.
Key Features
- Designed for aluminium cross anchors
- 60mm diameter
- 65mm height
- M8 female thread
- Weather-resistant aluminium chill casting
- Yellow powder-coated finish
- Compatible with straight and twisted aluminium cross anchors
- Suitable for applications including slope and landfill monitoring
Technical Specifications
- Product Type: End head for cross anchors
- Manufacturer: Goecke
- Article No.: 00508 012-8
- Diameter: 60mm
- Height: 65mm
- Thread: M8 female thread
- Material: Weather-resistant aluminium chill casting
- Finish: Yellow powder-coated
Product Overview
This Goecke end head is designed for use with aluminium cross anchors and provides an M8 female thread for mounting compatible prism adapters and other accessories. The 60mm diameter and 65mm height provide the specified head dimensions for the cross-anchor system.
The end head is permanently connected to the cross-anchor shaft using one or two strong hammer blows. Once installed, a suitable prism adapter can be screwed into the M8 female thread, making the assembly suitable for monitoring applications such as slopes and landfills.
