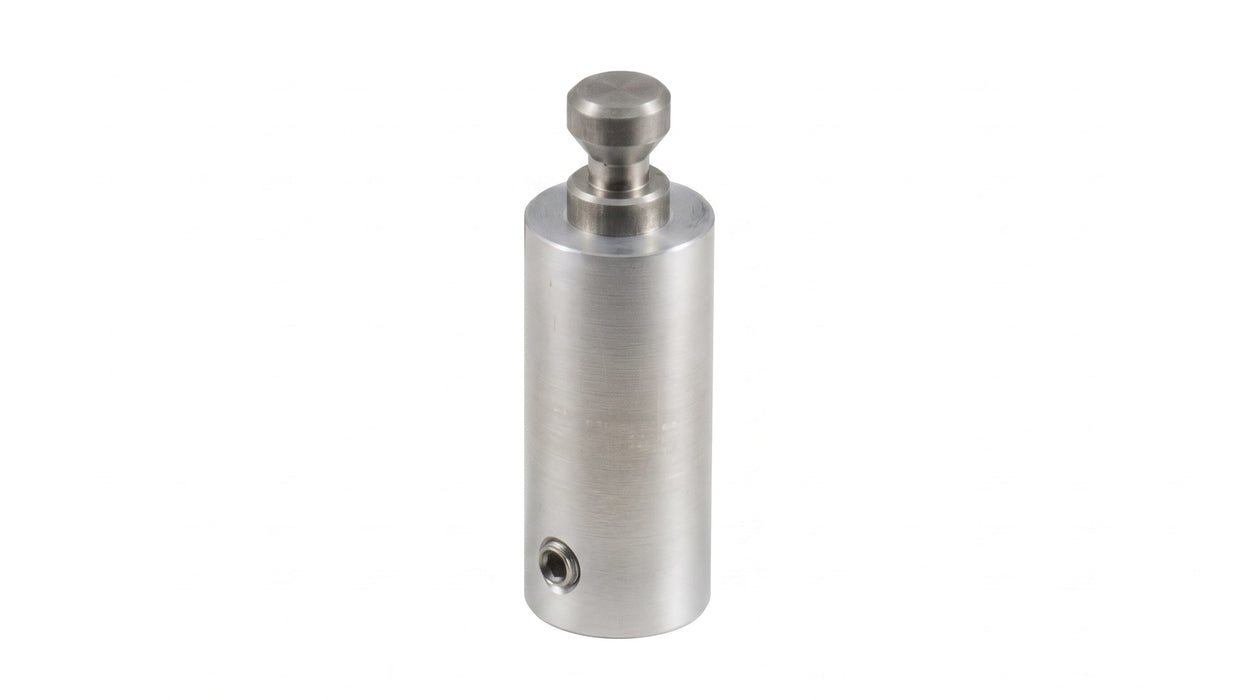

6651 Extension ZP11 dia 22-100mm, B1216 anodized aluminium
SKU 6651
Original price
£37.00
-
Original price
£37.00
Original price
£37.00
£37.00
-
£37.00
Current price
£37.00
Shipping
1-3 days delivery
Key Features
- 100mm extension for the Bohnenstingl Modular Mini-Vektor system
- Designed for use with ZP11 cylinder prisms
- 22mm cylinder diameter
- Anodised aluminium construction
- B1216 quick connection system
- V2A B1216 bolt at the top
- B1216 bolt socket at the bottom
- SW3 Allen screw for securing the extension
- Extension accuracy of ±0.1mm
- Provides a 150mm prism distance in the Modular Mini-Vektor configuration
Technical Specifications
- Product Type: ZP11 Extension / Spacer
- Order Number: 6651
- System: Bohnenstingl Modular Mini-Vektor
- Diameter: Ø22mm
- Extension Length: 100mm
- Material: Anodised aluminium
- Connection System: B1216 quick connection
- Top Connection: V2A B1216 bolt, Ø12 × 16mm
- Bottom Connection: B1216 bolt socket
- Locking Screw: SW3 Allen screw
- Accuracy: ±0.1mm
- Prism Distance: 150mm
Product Overview
The Bohnenstingl 6651 is a 100mm ZP11 extension designed for the Modular Mini-Vektor system. The extension has a 22mm diameter and is manufactured from anodised aluminium. It uses Bohnenstingl's B1216 quick connection system, with a V2A bolt at the top, a B1216 socket at the bottom and an SW3 Allen screw for securing the extension. The 100mm extension provides a 150mm prism distance in the corresponding Modular Mini-Vektor configuration.
