Angle pass APN 60, Hultafors

Angle pass APN 60, Hultafors

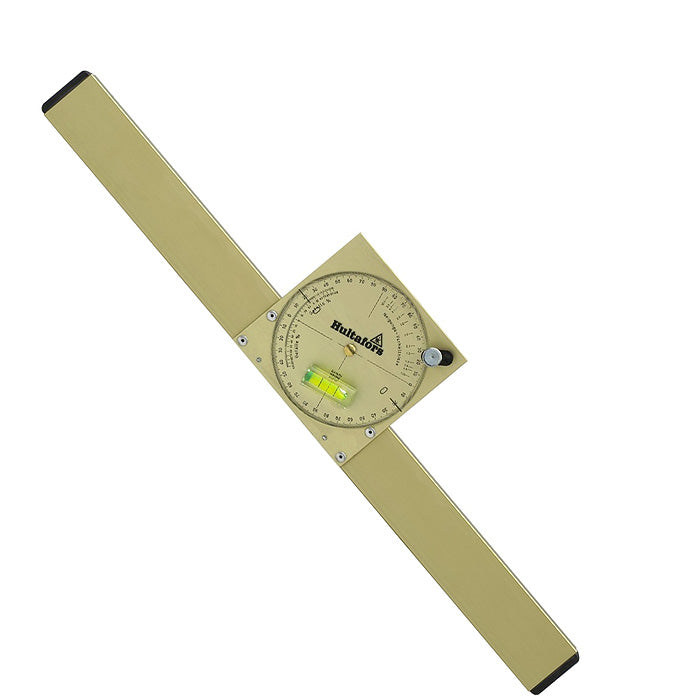

Inclinometer APN 60 is an angle and inclination caliper made of strong aluminum profile measuring 50x23 mm and weighing approx. 740 g/m. The measuring range of 360° is divided into 4x90°. The tool shows slope 0-100%. Unbreakable block vials with very high transparency and durability.

• Length 600 mm (60cm)
• The radius of the spirit level is 200 mm, which gives a sensitivity of 10 mm/m.
• Tolerance in normal position ±0.5 mm/m = 0.03°.
• The spirit level liquid is a light-flowing colored oil mixture that gives the bubble an optimal opportunity to move.
• Resistant to ultraviolet light and temperature changes.
• The bubble is not affected by static electricity because the liquid is antistatic.

Additional information: *Model NP 121 is a protractor.
