Setting mirror 1.0 m with base plate 40 x 40 cm

Setting mirror 1.0 m with base plate 40 x 40 cm

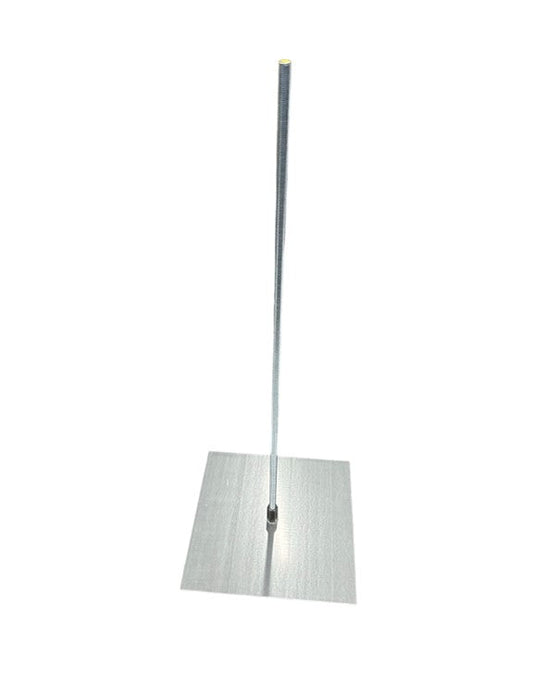

The setting mirror consists of a base plate 40 x 40 cm, 1.0 m threaded rod with a diameter of 16 mm and mounting details

You can supplement yourself with a protective pipe of a suitable length when installing the mirror, such as a 110 mm ground drain pipe

The setting mirror can be supplemented with one or more extension kits consisting of extenders 1.0 m to achieve the desired total length of the mirror

The mirror is then weighed with balances, alternatively, it is supplemented with suitable adapters to mount a prism for total station measurement

The setting mirror consists of article no.: SP-01-BP+SP-02-GS+SP-03-SM+SP-04-SS+SP-05-RB
