Prism rod adjustment station

Prism rod adjustment and control station

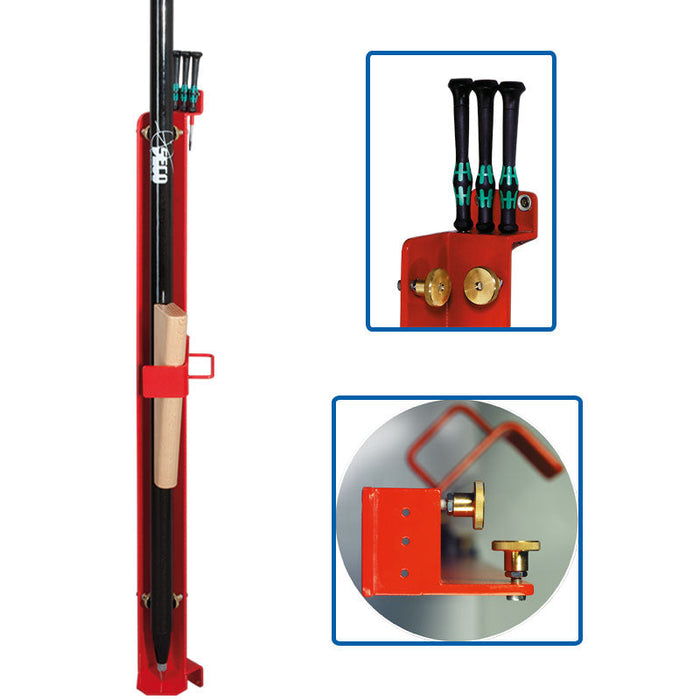

• A complete station for adjusting and checking prism rods
• Easily mounted on the wall (all you need is a free wall surface of 80cm or longer)
• Installation and user guide (pdf)

Instruction

• After mounting the adjustment station, the prism rods can be checked in an instant (however, you must first calibrate and adjust the brass bolts with a spirit level).
• Place the prism rod in the station and apply light pressure to the two adjustable brass bolts.
• If the circular bubble is not out of alignment, just take out the prism rod - the check is done in seconds.
• When you make the adjustment, you should be able to rotate the rod 360 degrees and the bubble should always lie correctly if you have got it right.
• If the circular bubble needs to be adjusted, fasten the prism rod with the wooden wedge in the station so that it is pressed against the brass bolts. The bubble can then be adjusted.
• The adjustment of the circular bubble is performed with the tool kit stored in the practical tool holder on top of the unit.
• A small screwdriver and two Allen keys 2.0mm and 2.5mm are included in the high-quality tool set.
• Feel free to complete the adjustment station with one of our levels: https://www.geofix.se/verktyk/vattenpass
